24KW PTFE Coated Electric Immersion Heater For Process And Chemical Heating

Large Image : 24KW PTFE Coated Electric Immersion Heater For Process And Chemical Heating

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PTFE immersion Heater 15

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

24KW PTFE Coated Electric Immersion Heater For Process And Chemical Heating

Description

Name:	24KW PTFE Immersion Electric Heater For Process And Chemical Heating Applications	Supply Voltage (V/Phase)::	110V-480V
Power(KW):	1KW-6KW	Type Of Temperature Control:	Overheat Protection
Application:	Acid Heating And Corrosive Chemical Heating	Frame Material:	PTFE
Inside Material:	SUS	Cable Length:	2 Meters/3meters/others
Highlight:	24KW Electric Immersion Heater , PTFE Electric Immersion Heater , PTFE Coated Electric Immersion Heater

24KW PTFE Immersion Electric Heater For Process And Chemical Heating Applications

PRODUCT DESCRIPTION

Excellent chemical resistance to aggressive acids.

FEATURES
- PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
- Low watt density design 10 watts/square inch (1.5w/cm²).
- Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
- Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
- Certification: cULus. CE certified and CSA
SPECIFICATIONS
- 3000 - 18000 watts
- 120 to 600 volts (600 volts on 12,000 watts or lower only)
OPTIONS AVAILABLE (CONSULT FACTORY)
- Resettable thermal protectors
- Polypropylene guards (sold separately)
- Custom configurations and lengths
- Custom wire and conduit lengths

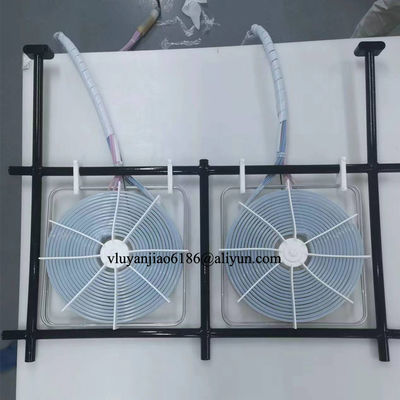

FLAT ASSEMBLY TYPE – PTFE Immersion Heater

Universal ‘all plastic’ model
Ideal for important powers (from 6kW)
Up to 48 kW
Ideal for large tanks

Universal model for all types of installation such as side of tank, bottom of tank with feet or on slidings.
Rigid structure ideal for important powers.

Assembly type F
On a plastic rod frame PVDF or PP.
Standard configuration : heating cable coated Teflon® FEP and PP or PVDF rod frame.
For use on the side or at the bottom of the tank.

Others Applications

Precious Metal Deposition
Engineered to meet the most stringent requirements, accurate and reliable Heaters in Precious Metals' Deposition reduce materials waste. Low ripple Power Supplies provide clean and smooth direct current (DC), precision results while also saving on materials.

Products For General Metal Finishing

MOTS SINGLE
MOTS Single Heater – Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.

24KW PTFE Coated Electric Immersion Heater For Process And Chemical Heating 0

MOTS SINGLE – DAS, PHOSPHATE
MOTS Single DAS Phosphate Heater – Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.

24KW PTFE Coated Electric Immersion Heater For Process And Chemical Heating 1

MOTS TRIPLE – L SHAPED, DERATED
Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.

24KW PTFE Coated Electric Immersion Heater For Process And Chemical Heating 2

MOTS SINGLE – BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

. 24KW PTFE Coated Electric Immersion Heater For Process And Chemical Heating 3

MOTS TRIPLE – L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

24KW PTFE Coated Electric Immersion Heater For Process And Chemical Heating 4

6HS SERIES – TUBULAR
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

24KW PTFE Coated Electric Immersion Heater For Process And Chemical Heating 5

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition Products(2)
MOTS TRIPLE – DEEP TANK Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.	MOTS TRIPLE – DEEP TANK Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.	MOTS TRIPLE Metal over the side heater. Three phase. 3000-36000 watts. 208-600 volts.
9HX SERIES Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.	6HX SERIES Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.	3HXOL SERIES Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.
HXSL SERIES Custom, low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.	HXRL SERIES Low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.	HXO SERIES Low watt density, O shaped fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-9000 watts, 120-600 volts.
HXF SERIES Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.	HX SERIES Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . Single phase. 500-9000 watts, 120-600 volts.
