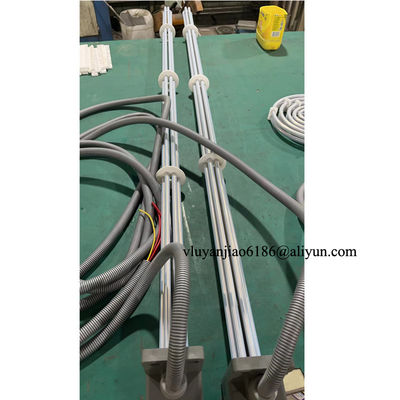

3 Phase PTFE Immersion Heaters Over the Side for Semiconductor Wafer Cleaning

Large Image : 3 Phase PTFE Immersion Heaters Over the Side for Semiconductor Wafer Cleaning

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PTFE immersion Heater 05

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

3 Phase PTFE Immersion Heaters Over the Side for Semiconductor Wafer Cleaning

Description

Name:	3HX Series 3 Phase Over The Side Three-Element PTFE Immersion Heaters	Supply Voltage (V/Phase)::	110V-480V
Power(KW):	1KW-6KW	Type Of Temperature Control:	Overheat Protection
Application:	Acid Heating And Corrosive Chemical Heating	Frame Material:	PTFE
Inside Material:	SUS	Cable Length:	2 Meters/3meters/others
Highlight:	3 Phase PTFE Immersion Heaters , Over The Side PTFE Immersion Heater , Wafer Cleaning Immersion Heaters

3HX Series 3 Phase Over the Side Three-Element PTFE Immersion Heaters

PTFE HEATERS:

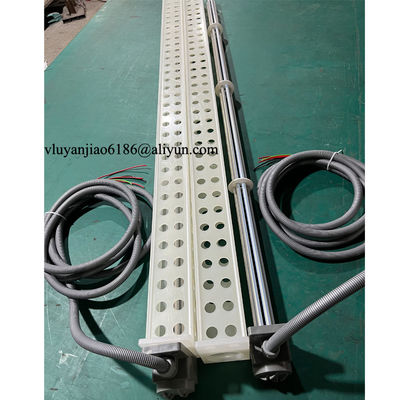

Specify thermal overload protection desired. Guards are recommended on over the side heaters and required on L-Shaped heaters. Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).

Excellent chemical resistance to aggressive acids.

PTFE Immersion Heater For Corrosive Chemical Heating FEATURES

· PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).

· Low watt density design 10 watts/square inch (1.5w/cm²).

· Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.

· Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).

· Certification: ISO9001,CE

SPECIFICATIONS

· 500 - 9000 watts

· 120 to 600 volts (600 volts on 4500 watts or lower only)

OPTIONS AVAILABLE (CONSULT FACTORY)

· Resettable thermal protectors

· Polypropylene guards (sold separately)

· Custom configurations and lengths

· Custom wire and conduit lengths

Specify thermal overload protection desired. Guards are recommended on over the side heaters and required on L-Shaped heaters.

Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).

Others Applications

Point Of Use Heating
Point of Use (POU) Heating refers to the energy-efficient heating method of placing a small heater near the processing bath to reduce heat-up wait times.

Products For Point Of Use Heating

Applications

Semiconductor Wafer Cleaning
Etching
Inline Chemical Heating
Point of Use Heating (POU)

High-Purity PFA Inline Chemical Heater

PTFE Inline Heater

3 Phase PTFE Immersion Heaters Over the Side for Semiconductor Wafer Cleaning 1

Inline Chemical Heater

3 Phase PTFE Immersion Heaters Over the Side for Semiconductor Wafer Cleaning 2

RO/DI Water Heating
Deionized water (DI Water) has become a crucial part of many industrial process applications' impurity removal process. Cleaning semiconductors or other ultra-clean end-use devices requires the highest level of purity to reduce product failure.

Products For RO/DI Water Heating

Applications

Semiconductor
Flat Panel Display

Heating Systems for Purified, DI Water

PTFE Inline Chemical Heater

3 Phase PTFE Immersion Heaters Over the Side for Semiconductor Wafer Cleaning 4

Electro-Polishing
Electro-polishing (Electropolishing) involves using electricity and chemical reactions to remove ions from the surface to deburr and reduce the surface roughness for a smooth, level, and clean surface, free of irregularities. Surplus power supplies deliver full power supply output performance, high efficiency, high-speed, DC output, connectivity, reliability, and ETL certification.

Products For Electro-Polishing

9HX SERIES
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.
3 Phase PTFE Immersion Heaters Over the Side for Semiconductor Wafer Cleaning 5

6HX SERIES
Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.
3 Phase PTFE Immersion Heaters Over the Side for Semiconductor Wafer Cleaning 6

3HXOL SERIES

Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.

3 Phase PTFE Immersion Heaters Over the Side for Semiconductor Wafer Cleaning 7

HXF SERIES
Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.
3 Phase PTFE Immersion Heaters Over the Side for Semiconductor Wafer Cleaning 8

HX SERIES
Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . Single phase. 500-9000 watts, 120-600 volts.
3 Phase PTFE Immersion Heaters Over the Side for Semiconductor Wafer Cleaning 9

3HX SERIES
Low watt density, 3 element heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 1000-6000 watts, 120-600 volts.

3 Phase PTFE Immersion Heaters Over the Side for Semiconductor Wafer Cleaning 10
