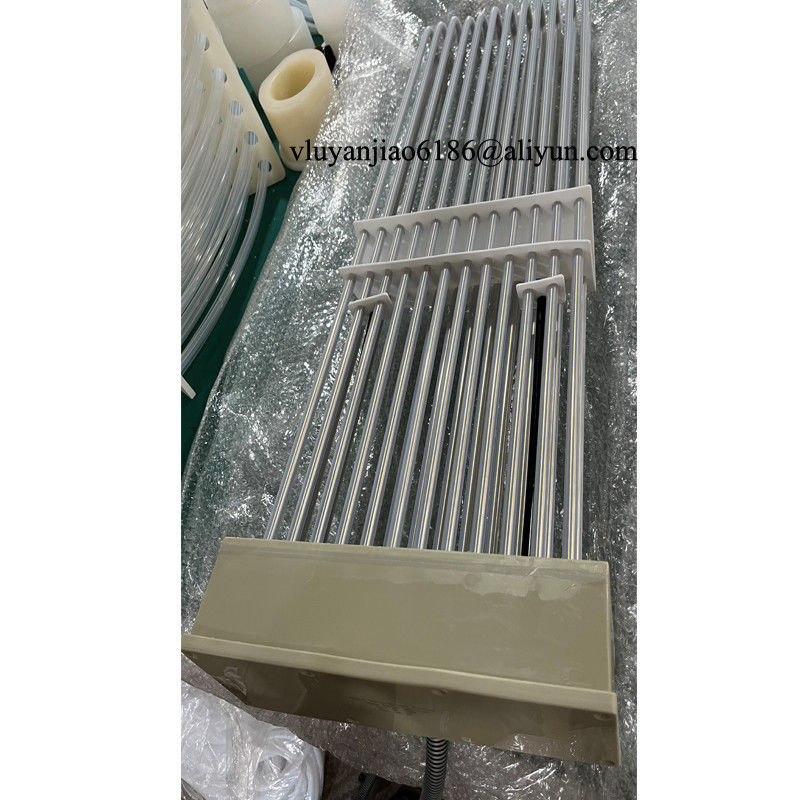

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element

Name: Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element
Brand: Surplus Industrial Technology Limited
SKU: PTFE immersion Heater 11
Availability: InStock

All Products

Inline Chemical Heater
(31)

PFA Immersion Tank Heaters
(22)

PFA Frame Heater
(20)

PTFE Heat Exchanger
(18)

PTFE Wet Process Tanks
(23)

PTFE Parts
(20)

PTFE Immersion Heaters
(21)

Semiconductor Heater
(20)

Photovoltaic Heater
(9)

Metal Immersion Heaters
(8)

PTC Heaters
(6)

Quartz Immersion Heater
(6)

Stainless Steel N2 Heater
(1)

Deionized Water Heater System
(3)

Certification

I'm Online Chat Now

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element

Large Image : Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PTFE immersion Heater 11

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element

Description

Name:	220V 3P 10KW Twelve Element Fluoropolymer (PTFE) Over The Side Immersion Heaters	Supply Voltage (V/Phase)::	110V-480V
Power(KW):	1KW-6KW	Type Of Temperature Control:	Overheat Protection
Application:	Acid Heating And Corrosive Chemical Heating	Frame Material:	PTFE
Inside Material:	SUS	Cable Length:	2 Meters/3meters/others
Highlight:	220V Over the Side Immersion Heaters , 10KW Over the Side Immersion Heaters , Fluoropolymer Over the Side Immersion Heaters

220V 3P 10KW Twelve Element Fluoropolymer (PTFE) Over the Side Immersion Heaters

PRODUCT DESCRIPTION

Excellent chemical resistance to aggressive acids.

FEATURES
- PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
- Low watt density design 10 watts/square inch (1.5w/cm²).
- Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
- Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
- Certification: cULus. CE certified and CSA
SPECIFICATIONS
- 3000 - 18000 watts
- 120 to 600 volts (600 volts on 12,000 watts or lower only)
OPTIONS AVAILABLE (CONSULT FACTORY)
- Resettable thermal protectors
- Polypropylene guards (sold separately)
- Custom configurations and lengths
- Custom wire and conduit lengths

Specify thermal overload protection desired. Guards are recommended on over the side heaters and required on L-Shaped heaters. Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).

OPTIONS AVAILABLE (CONSULT FACTORY)
- Resettable thermal protectors
- Polypropylene guards (sold separately)
- Custom configurations and lengths
- Custom wire and conduit lengths

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 0

Others Applications

Acid Heating And Corrosive Chemical Heating

Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, Process Technology fluoropolymer (PTFE) heaters and exchangers are engineered to perform.

Acid Heating And Corrosive Chemical Heating(1)

3HX Series Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 1

HXT SERIES – SCREWPLUG

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 2

9HX SERIES

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 3

6HX SERIES

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 4

3HXOL SERIES Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 5

HXSL SERIES

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 6

Ultra-High-Purity Heating
Designed with Ultra-High-Purity processes in mind, Surplus delivers clean-room assembled, reliable heating and power solutions to fit specific needs.

Products For Ultra-High-Purity Heating

Inline Heater

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 7

PFA Inline Heater

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 8

Inline Chemical Heater

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 9

Chemical Heating

Fluoropolymer (PTFE) heater and heating components are engineered with protection from corrosive chemicals while maintaining the highest quality and safety standards.

Chemical Heating(2)

HXT SERIES – SCREWPLUG
Low watt density, spiral screwplug heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 1000-6000 watts, 120-600 volts.

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 10

HXOL SERIES
Low watt density, flexible riser, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 1000-6000 watts, 120-600 volts.

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 11

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition

Products(2)

MOTS SINGLE – BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

. Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 12

MOTS TRIPLE – L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 13

6HS SERIES – TUBULAR
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 14

MOTS TRIPLE – DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 15

MOTS TRIPLE – DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.
Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 16

MOTS TRIPLE
Metal over the side heater. Three phase. 3000-36000 watts. 208-600 volts.

Fluoropolymer PTFE Over the Side Immersion Heaters 220V 3P 10KW Twelve Element 17
