10kW PTFE Housing Inline Chemical Heater Three Phase Industrial In Line Electric Heater

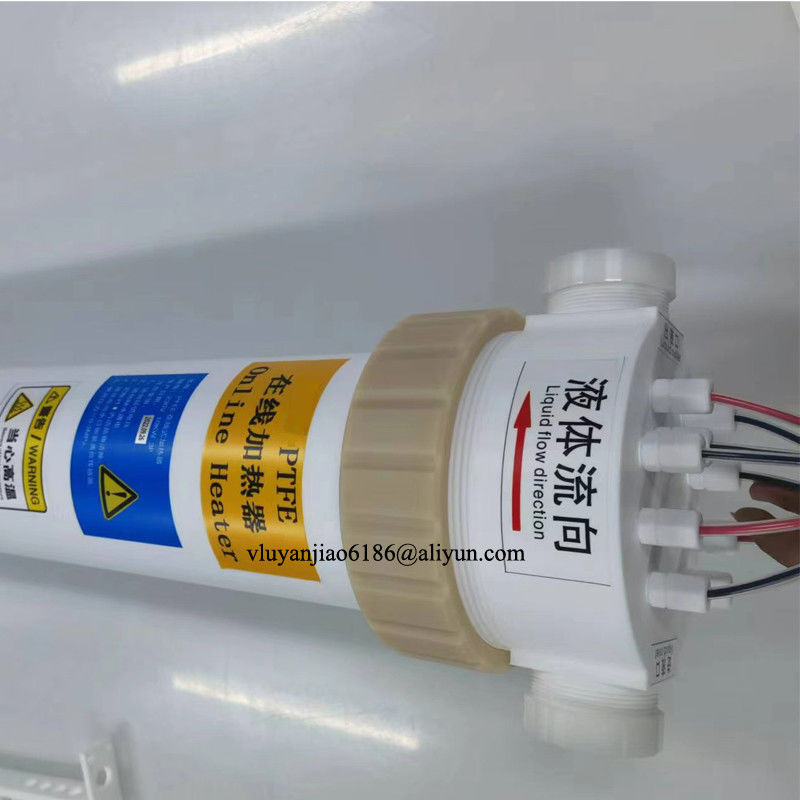

Large Image : 10kW PTFE Housing Inline Chemical Heater Three Phase Industrial In Line Electric Heater

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001,CE
Model Number:	Inline chemical Heater 08

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Contact Now

10kW PTFE Housing Inline Chemical Heater Three Phase Industrial In Line Electric Heater

Description

Name:	10kW PTFE Inline Chemical Heater	Voltage:	230V(Customizable)，Three Phase
Power:	10KW	Material:	PTFE Housing
Heater Applications:	Fluid Heating,Semiconductor,Photovoltaic,Surface Finishing,Electro-Plating	Market:	Semiconductor,Life Sciences,Food & Beverage,Industrial
Highlight:	10kW Industrial In Line Electric Heater , Three Phase Inline Chemical Heater , PTFE Housing Inline Industrial Heater

10kW PTFE Inline Chemical Heater

Benefits

Heavy gauge pre-formed Inconel element can stand up to high stress conditions without breaking down
Power modulator monitors heater element temp and prevents heat buildup inside the housing
Sealed housing prevents chemistry from attacking internal components & provides secondary containment
Internal leak detect strip (requires external monitor) gives early detection of chemical leaks
All wiring shielded with teflon conduit to prevent chemical attack
Indirect heating design, no submerged heater elements
No N2 or gas purge required

Features

No O-Ring seals
All wetted surfaces are high purity PFA
PTFE housing for double containment
Maximized watt density for performance
Light weight construction
Small foot print enabled by unique design
Zero maintenance required
PFA fluid path, wide chemistry compatibility
High temperature capability 200°C+

Specifications

Heater	PTFE In-line Chemical Heater
Wattages	1.5-12 kW
Process Chemistries	Dilute Hydrofluoric acids (DHF), Buffered Hydrofluoric acids (BHF), Buffered Oxide etch (BOE), Alkaline Chemicals (TMAH, KOH, NAOH), Fluorinated Solvents, Hydrofluoric Acid, Glycol, and much more.
Max Operating Temperature	180°C (consult factory for higher temperatures)
Max Pressure	40 psi at 180°C
Voltages	200-400VAC, single or 3 phase model dependent

Applications

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition Products(2)
MOTS SINGLE – BOTTOM, DERATED Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts. .	MOTS TRIPLE – L SHAPED L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.	6HS SERIES – TUBULAR Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.
MOTS TRIPLE – DEEP TANK Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.	MOTS TRIPLE – DEEP TANK Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.	MOTS TRIPLE Metal over the side heater. Three phase. 3000-36000 watts. 208-600 volts.
9HX SERIES Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.	6HX SERIES Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.	3HXOL SERIES Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.
HXSL SERIES Custom, low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.	HXRL SERIES Low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.	HXO SERIES Low watt density, O shaped fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-9000 watts, 120-600 volts.
HXF SERIES Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.	HX SERIES Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . Single phase. 500-9000 watts, 120-600 volts.
