480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over the Side

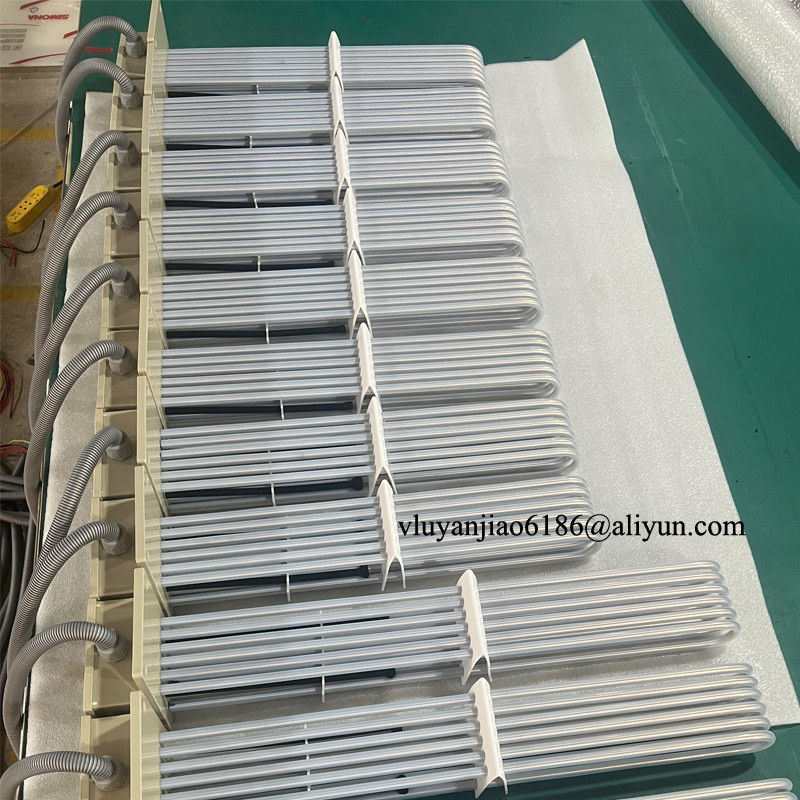

Large Image : 480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over the Side

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PTFE immersion Heater 09

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over the Side

Description

Name:	480V 3P 3KW 610MM Fluoropolymer PTFE Six Element Over The Side Immersion Heater	Supply Voltage (V/Phase)::	110V-480V
Power(KW):	1KW-6KW	Type Of Temperature Control:	Overheat Protection
Application:	Acid Heating And Corrosive Chemical Heating	Frame Material:	PTFE
Inside Material:	SUS	Cable Length:	2 Meters/3meters/others
Highlight:	480V Fluoropolymer Immersion Heater , Six Element Immersion Heater , 3P 3KW Immersion Heater

480V 3P 3KW 610MM Fluoropolymer PTFE Six Element Over the Side Immersion Heater

PRODUCT DESCRIPTION

Excellent chemical resistance to aggressive acids.

FEATURES
- PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
- Low watt density design 10 watts/square inch (1.5w/cm²).
- Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
- Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
- Certification: cULus. CE certified and CSA
SPECIFICATIONS
- 3000 - 18000 watts
- 120 to 600 volts (600 volts on 12,000 watts or lower only)
OPTIONS AVAILABLE (CONSULT FACTORY)
- Resettable thermal protectors
- Polypropylene guards (sold separately)
- Custom configurations and lengths
- Custom wire and conduit lengths

Specify thermal overload protection desired. Guards are recommended on over the side heaters and required on L-Shaped heaters. Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).

OPTIONS AVAILABLE (CONSULT FACTORY)
- Resettable thermal protectors
- Polypropylene guards (sold separately)
- Custom configurations and lengths
- Custom wire and conduit lengths

480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over the Side 0

Others Applications

Acid Heating And Corrosive Chemical Heating

Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, Process Technology fluoropolymer (PTFE) heaters and exchangers are engineered to perform.

Acid Heating And Corrosive Chemical Heating(1)

3HX Series 480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over the Side 1

HXT SERIES – SCREWPLUG

480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over the Side 2

9HX SERIES

480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over the Side 3

6HX SERIES

480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over the Side 4

3HXOL SERIES 480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over the Side 5

HXSL SERIES

480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over the Side 6

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition

Products(2)

MOTS TRIPLE – VERTICAL
MOTS Triple Vertical: L-shaped, vertical metal over the side heater. 3,000-36,000 watts, 208-600 volts.

480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over the Side 7

9HS SERIES – TUBULAR
9HS PTFE Heater: Over the side, 9 element, tubular heater. Three phase. 9000-31500 watts, 208-600 volts.

480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over the Side 8

V SERIES – VARIPOWER
Metal or Fluoropolymer (PTFE) sheath heater. Single phase. Heats up to 212°F (100°C). 100-1000 watts, 120-240 volts.

480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over the Side 9
