Over The Side Bottom PTFE Immersion Heaters Multi Element L Shaped 3 Phase

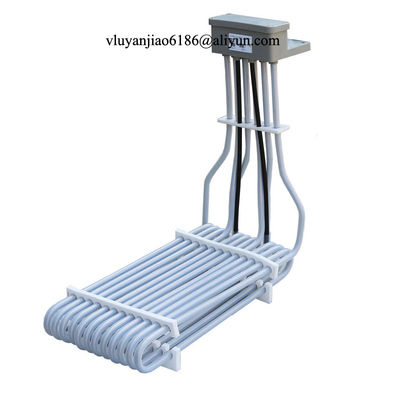

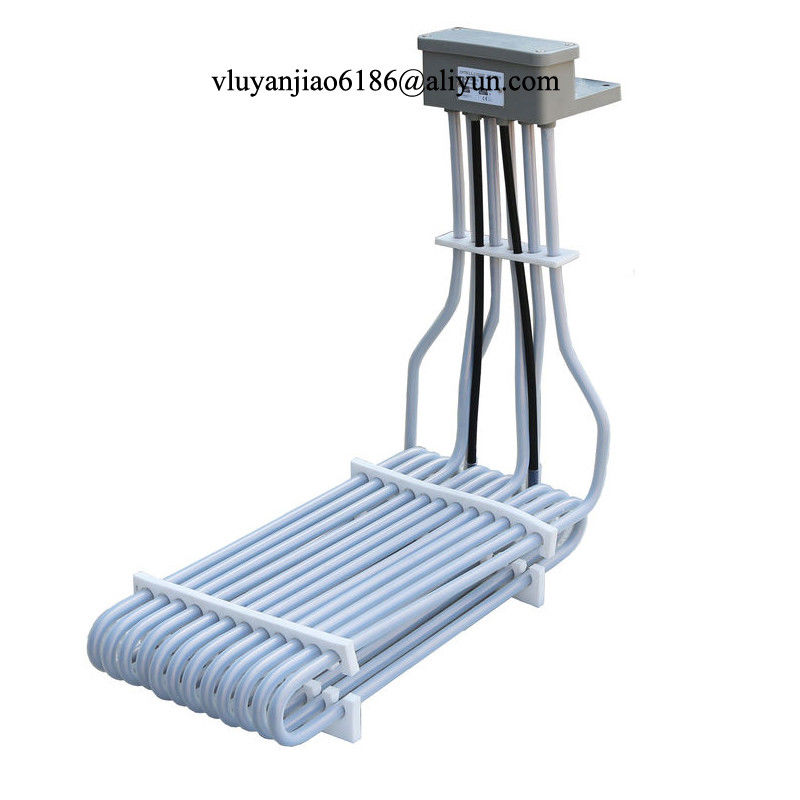

Large Image : Over The Side Bottom PTFE Immersion Heaters Multi Element L Shaped 3 Phase

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PTFE immersion Heater 08

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

Over The Side Bottom PTFE Immersion Heaters Multi Element L Shaped 3 Phase

Description

Name:	3HXOL Series -Multi Element L-Shaped Fluoropolymer (PTFE) Over The Side 3 Phase Bottom Immersion Heater	Supply Voltage (V/Phase)::	110V-480V
Power(KW):	1KW-6KW	Type Of Temperature Control:	Overheat Protection
Application:	Acid Heating And Corrosive Chemical Heating	Frame Material:	PTFE
Inside Material:	SUS	Cable Length:	2 Meters/3meters/others
Highlight:	PTFE Immersion Heaters L Shaped , PTFE 3 Phase Immersion Heater , PTFE Immersion Heaters Multi Element

3HXOL Series -Multi Element L-Shaped Fluoropolymer (PTFE) Over The Side 3 Phase Bottom Immersion Heater

PRODUCT DESCRIPTION

Excellent chemical resistance to aggressive acids.

FEATURES
- PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
- Low watt density design 10 watts/square inch (1.5w/cm²).
- Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
- Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
- Certification: cULus. CE certified and CSA
SPECIFICATIONS
- 3000 - 18000 watts
- 120 to 600 volts (600 volts on 12,000 watts or lower only)
OPTIONS AVAILABLE (CONSULT FACTORY)
- Resettable thermal protectors
- Polypropylene guards (sold separately)
- Custom configurations and lengths
- Custom wire and conduit lengths

Specify thermal overload protection desired. Guards are recommended on over the side heaters and required on L-Shaped heaters. Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).

GUARDS SOLD SEPARATELY

Others Applications

Point Of Use Heating
Point of Use (POU) Heating refers to the energy-efficient heating method of placing a small heater near the processing bath to reduce heat-up wait times.

Products For Point Of Use Heating

Applications

Semiconductor Wafer Cleaning
Etching
Inline Chemical Heating
Point of Use Heating (POU)

High-Purity PFA Inline Chemical Heater

PTFE Inline Heater

Over The Side Bottom PTFE Immersion Heaters Multi Element L Shaped 3 Phase 1

Inline Chemical Heater

Over The Side Bottom PTFE Immersion Heaters Multi Element L Shaped 3 Phase 2

RO/DI Water Heating
Deionized water (DI Water) has become a crucial part of many industrial process applications' impurity removal process. Cleaning semiconductors or other ultra-clean end-use devices requires the highest level of purity to reduce product failure.

Products For RO/DI Water Heating

Applications

Semiconductor
Flat Panel Display

Heating Systems for Purified, DI Water

PTFE Inline Chemical Heater

Over The Side Bottom PTFE Immersion Heaters Multi Element L Shaped 3 Phase 4

Acid Heating And Corrosive Chemical Heating

Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, Process Technology fluoropolymer (PTFE) heaters and exchangers are engineered to perform.

Acid Heating And Corrosive Chemical Heating(1)

3HX Series

HXT SERIES – SCREWPLUG

9HX SERIES

Over The Side Bottom PTFE Immersion Heaters Multi Element L Shaped 3 Phase 7

6HX SERIES

3HXOL SERIES

HXSL SERIES
