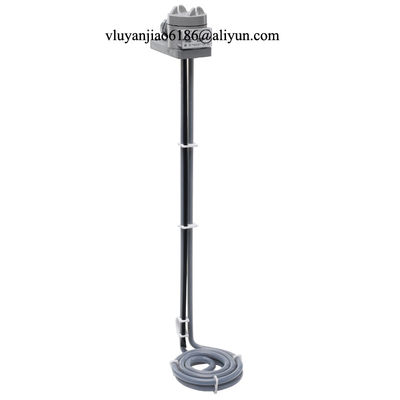

TEFLON PTFE Fluoropolymer Bottom Electric Immersion Heaters Chemical Heating

Large Image : TEFLON PTFE Fluoropolymer Bottom Electric Immersion Heaters Chemical Heating

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PTFE immersion Heater 04

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

TEFLON PTFE Fluoropolymer Bottom Electric Immersion Heaters Chemical Heating

Description

Name:	HXFL Style TEFLON/PTFE/Fluoropolymer Bottom Electric Process Immersion Heaters	Supply Voltage (V/Phase)::	110V-480V
Power(KW):	1KW-6KW	Type Of Temperature Control:	Overheat Protection
Application:	Acid Heating And Corrosive Chemical Heating	Frame Material:	PTFE
Inside Material:	SUS	Cable Length:	2 Meters/3meters/others
Highlight:	TEFLON Electric Immersion Heaters , Fluoropolymer Chemical Immersion Heaters

HXFL Style TEFLON/PTFE/Fluoropolymer Bottom Electric Process Immersion Heaters

PTFE HEATERS:

Specify thermal overload protection desired. Guards are recommended on over the side heaters and required on L-Shaped heaters. Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).

Excellent chemical resistance to aggressive acids.

PTFE Immersion Heater For Corrosive Chemical Heating FEATURES

· PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).

· Low watt density design 10 watts/square inch (1.5w/cm²).

· Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.

· Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).

· Certification: ISO9001,CE

SPECIFICATIONS

· 500 - 9000 watts

· 120 to 600 volts (600 volts on 4500 watts or lower only)

OPTIONS AVAILABLE (CONSULT FACTORY)

· Resettable thermal protectors

· Polypropylene guards (sold separately)

· Custom configurations and lengths

· Custom wire and conduit lengths

Specify thermal overload protection desired. Guards are recommended on over the side heaters and required on L-Shaped heaters.

Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).

Others Applications

Point Of Use Heating
Point of Use (POU) Heating refers to the energy-efficient heating method of placing a small heater near the processing bath to reduce heat-up wait times.

Products For Point Of Use Heating

Applications

Semiconductor Wafer Cleaning
Etching
Inline Chemical Heating
Point of Use Heating (POU)

High-Purity PFA Inline Chemical Heater

PTFE Inline Heater

TEFLON PTFE Fluoropolymer Bottom Electric Immersion Heaters Chemical Heating 1

Inline Chemical Heater

TEFLON PTFE Fluoropolymer Bottom Electric Immersion Heaters Chemical Heating 2

RO/DI Water Heating
Deionized water (DI Water) has become a crucial part of many industrial process applications' impurity removal process. Cleaning semiconductors or other ultra-clean end-use devices requires the highest level of purity to reduce product failure.

Products For RO/DI Water Heating

Applications

Semiconductor
Flat Panel Display

Heating Systems for Purified, DI Water

PTFE Inline Chemical Heater

TEFLON PTFE Fluoropolymer Bottom Electric Immersion Heaters Chemical Heating 4
