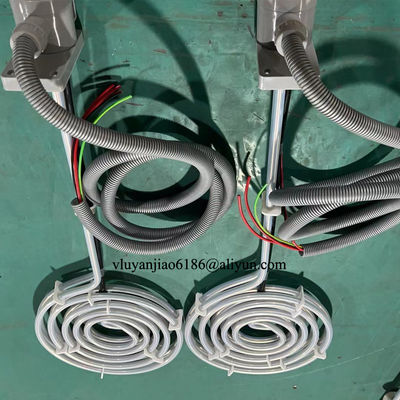

PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style

Name: PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style
Brand: Surplus Industrial Technology Limited
SKU: PTFE immersion Heater 03
Availability: InStock

All Products

Inline Chemical Heater
(31)

PFA Immersion Tank Heaters
(22)

PFA Frame Heater
(20)

PTFE Heat Exchanger
(18)

PTFE Wet Process Tanks
(23)

PTFE Parts
(20)

PTFE Immersion Heaters
(21)

Semiconductor Heater
(20)

Photovoltaic Heater
(9)

Metal Immersion Heaters
(8)

PTC Heaters
(6)

Quartz Immersion Heater
(6)

Stainless Steel N2 Heater
(1)

Deionized Water Heater System
(3)

Certification

I'm Online Chat Now

PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style

Large Image : PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PTFE immersion Heater 03

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style

Description

Name:	HXF Style Low Profile Over The Side Single Phase PTFE Immersion Heater 480V 1P 4KW	Supply Voltage (V/Phase)::	110V-480V
Power(KW):	1KW-6KW	Type Of Temperature Control:	Overheat Protection
Application:	Acid Heating And Corrosive Chemical Heating	Frame Material:	PTFE
Inside Material:	SUS	Cable Length:	2 Meters/3meters/others
Highlight:	PTFE Over The Side Immersion Heater , 480V Over The Side Tank Heaters , Over The Side Immersion Tank Heater

HXF Style Low Profile Over the Side Single Phase PTFE Immersion Heater 480V 1P 4KW

PTFE HEATERS:

Specify thermal overload protection desired. Guards are recommended on over the side heaters and required on L-Shaped heaters. Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).

Excellent chemical resistance to aggressive acids.

PTFE Immersion Heater For Corrosive Chemical Heating FEATURES

· PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).

· Low watt density design 10 watts/square inch (1.5w/cm²).

· Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.

· Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).

· Certification: ISO9001,CE

SPECIFICATIONS

· 500 - 9000 watts

· 120 to 600 volts (600 volts on 4500 watts or lower only)

OPTIONS AVAILABLE (CONSULT FACTORY)

· Resettable thermal protectors

· Polypropylene guards (sold separately)

· Custom configurations and lengths

· Custom wire and conduit lengths

Specify thermal overload protection desired. Guards are recommended on over the side heaters and required on L-Shaped heaters.

Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).

Others Applications

Precious Metal Deposition
Engineered to meet the most stringent requirements, accurate and reliable Heaters in Precious Metals' Deposition reduce materials waste. Low ripple Power Supplies provide clean and smooth direct current (DC), precision results while also saving on materials.

Products For General Metal Finishing

MOTS SINGLE
MOTS Single Heater – Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.

PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style 0

MOTS SINGLE – DAS, PHOSPHATE
MOTS Single DAS Phosphate Heater – Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.

PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style 1

MOTS TRIPLE – L SHAPED, DERATED
Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.

PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style 2

MOTS SINGLE – BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

. PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style 3

MOTS TRIPLE – L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style 4

6HS SERIES – TUBULAR
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style 5

9HX SERIES
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.
PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style 6

6HX SERIES
Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.
PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style 7

3HXOL SERIES

Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.

PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style 8

Point Of Use Heating
Point of Use (POU) Heating refers to the energy-efficient heating method of placing a small heater near the processing bath to reduce heat-up wait times.

Products For Point Of Use Heating

Applications

Semiconductor Wafer Cleaning
Etching
Inline Chemical Heating
Point of Use Heating (POU)

High-Purity PFA Inline Chemical Heater

PTFE Inline Heater

PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style 10

Inline Chemical Heater

PTFE Frame Over The Side Immersion Tank Heater Single Phase 480V 4KW HXF Style 11
