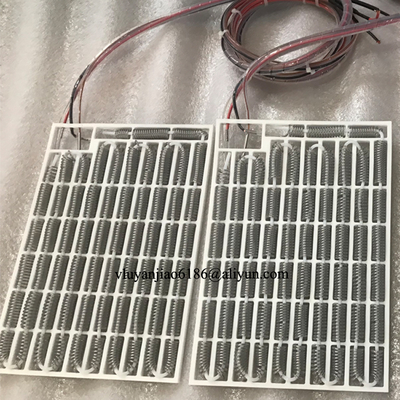

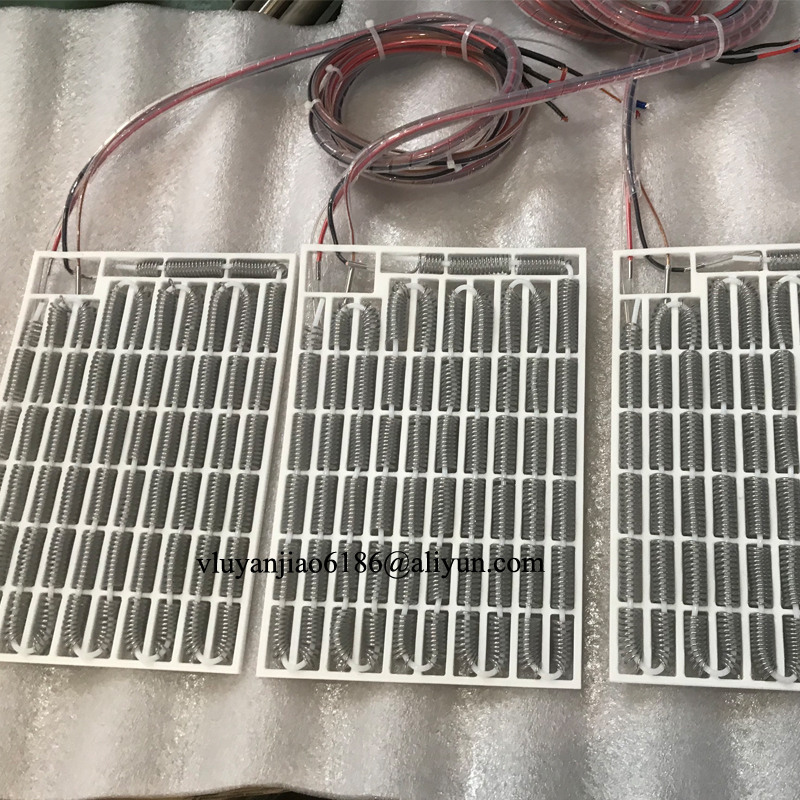

4.7KW PFA Immersion Tank PTFE Frame Heater

Overview

PFA immersion tank heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks.

Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance.

provide high-efficiency heating with superior temperature control and maximum power output in a compact footprint.

The heaters are available in various sizes that easily fit new and existing systems common to semiconductor, solar, MEMs, and other technological industries.

Immersion Heater series heats liquids at a constant temperature.

They are ideal for use in the semiconductor, pharmaceutical, and biomedical industries.

These compact heaters are designed to integrate easily into PVDF, PFA and quartz process tanks.

They safely, evenly and efficiently heat acids, bases, DI water and other noncombustible liquids up to 180°C.

The heat source is placed in the fluid to reduce heat loss. The heater's low mass and large surface area provide the fastest temperature response time. The system also offers the most comprehensive safety package with redundant interlocks that are integrated into every system. These rugged and durable heaters come in frame designs, with outputs of 1.0 to 40.0 kW. We can arrange a wide range of custom sizes, wattages, and voltages available, please contact us for all options!

Benefits

Ultrapure PFA wetted surfaces
Reliable heating of harsh chemicals
Efficient and even, clean heating
Maximum 180ºC heating capacity
Compact design: Maximum power in a small footprint
Low Watt density; < 4 Watts/Inch
Non-metallic ground wire: fluorine ground wire
Various types of temperature sensors available
Over-temperature safety thermocouple on heater
Perforated top and bottom floor grid as an option
Heaters designed to customer specifications and process tank sizes for easy integration

Applications

Fluid Heating
Filtration
Sterilization & Cleaning

Fluid Heating

Ultra-Pure Fluid Heaters

Overview
We offers a variety of patented and uniquely-engineered ultra-pure precision heaters for heating various chemical and plating solutions, gases, solvents and deionized water. Our award-winning engineers design and manufacture components from PFA, applied to patented PFA heating technology, that achieves a small mass with a large surface area, providing a faster heater response and a longer life at elevated temperatures. Our extremely flexible high-output heating coils are capable of being fashioned into an almost endless variety of shapes and sizes.

The resulting heaters outlast competing products of lesser capability and are designed into a wide range of standard and customized products.

Other Applications

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition Products(1)
B SERIES – SMALL TANK Small metal over the side heater. Excellent for laboratory and small tank applications. Heats up to 300°F (149°C). Single phase. 500-1500 watts, 120-240 volts..	3HS SERIES – TUBULAR Over the side, 3 element, tubular heater. Three phase. Three phase. 3000-10500 watts, 208-600 volts.	MOTS SINGLE – DERATED Derated, low watt density, metal over the side heater. Single or three phase. 500-6000 watts, 120-600 volts.
HXF SERIES Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.	FLS SERIES FLANGE HEATER Metal flanged heater, 3″, 5″ and 6″ flange sizes. 3000-72000 watts, 208-600 volts.	U SERIES COIL Metal Immersion Coil in U shape for chemical heating or cooling requiring minimal recovery time. Available in steel, 316 stainless steel and titanium.
