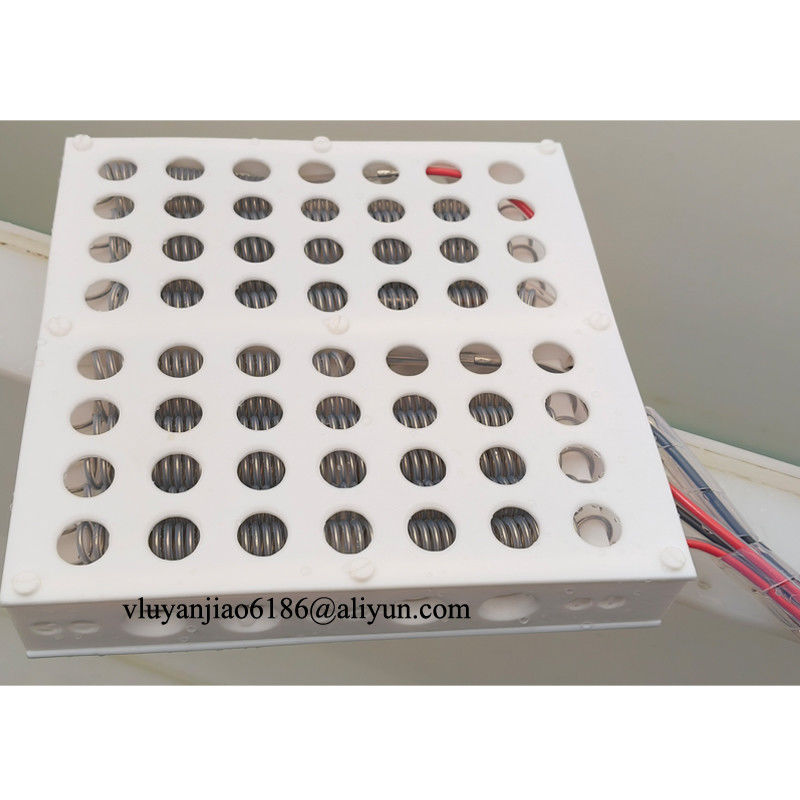

4.7KW Industrial Water Tank Immersion Heater With PTFE PFA Wetted Surfaces

Large Image : 4.7KW Industrial Water Tank Immersion Heater With PTFE PFA Wetted Surfaces

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PFA Immersion Tank Heater 11

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now Chat Now

4.7KW Industrial Water Tank Immersion Heater With PTFE PFA Wetted Surfaces

Description

Name:	4.7KW Maximum 200°C Heating Capability Ultrapure PTFEPFA Wetted Surfaces PFA Immersion Tank Heaters	Supply Voltage (V/Phase)::	400V 2Phase
Power(KW):	4.7	Type Of Temperature Control:	PT100 Or J Type
Application:	Semiconductor, Solar, MEMs, And Other Technological Industries	Frame Material:	PTFE
Inside Material:	PFA	Cable Length:	2 Meters/3meters/others
Highlight:	Industrial Water Tank Immersion Heater , 4.7KW Water Tank Immersion Heater , PTFE Industrial Immersion Heaters

4.7KW Maximum 200°C Heating Capability Ultrapure PTFE PFA Wetted Surfaces PFA Immersion Tank Heaters

PFA immersion tank heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance. PFA immersion tank heater provide high-efficiency heating with superior temperature control and maximum power output in a compact footprint. The heaters are available in various sizes that easily fit new and existing systems common to semiconductor, solar, MEMs, and other technological industries.

Specifications

Heater Element	Heating Coil
Wetted Surfaces	PFA/PTFE
Wattages	1.0 – 20 kW
Voltages	120 – 480 VAC 1 or 3 phase
Sizes (LxW)	7x5 to 19x14 inch
Height	1-5/8 inch
Temperature	200°C (392°F)
Hi-Limit Sensor	Type-J thermocouple
Ground Wire	Encapsulated
Lead Wire	15-ft

Other Applications

Point Of Use Heating
Point of Use (POU) Heating refers to the energy-efficient heating method of placing a small heater near the processing bath to reduce heat-up wait times.

Products For Point Of Use Heating

Applications

Semiconductor Wafer Cleaning
Etching
Inline Chemical Heating
Point of Use Heating (POU)

High-Purity PFA Inline Chemical Heater

PTFE Inline Heater

4.7KW Industrial Water Tank Immersion Heater With PTFE PFA Wetted Surfaces 1

Inline Chemical Heater

4.7KW Industrial Water Tank Immersion Heater With PTFE PFA Wetted Surfaces 2

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition

Products(2)

MOTS SINGLE – BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

. 4.7KW Industrial Water Tank Immersion Heater With PTFE PFA Wetted Surfaces 3

MOTS TRIPLE – L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

4.7KW Industrial Water Tank Immersion Heater With PTFE PFA Wetted Surfaces 4

6HS SERIES – TUBULAR
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

4.7KW Industrial Water Tank Immersion Heater With PTFE PFA Wetted Surfaces 5

MOTS TRIPLE – DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.

4.7KW Industrial Water Tank Immersion Heater With PTFE PFA Wetted Surfaces 6

MOTS TRIPLE – DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.
4.7KW Industrial Water Tank Immersion Heater With PTFE PFA Wetted Surfaces 7

MOTS TRIPLE
Metal over the side heater. Three phase. 3000-36000 watts. 208-600 volts.

4.7KW Industrial Water Tank Immersion Heater With PTFE PFA Wetted Surfaces 8
