Ultrapure PTFE PFA Wetted Surface Immersion Tank Heaters for PVDF Tanks

Large Image : Ultrapure PTFE PFA Wetted Surface Immersion Tank Heaters for PVDF Tanks

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PFA Immersion Tank Heater 12

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

Ultrapure PTFE PFA Wetted Surface Immersion Tank Heaters for PVDF Tanks

Description

Name:	Ultrapure PTFE PFA Wetted Surfaces PFA Immersion Tank Heaters For PVDF Tanks	Supply Voltage (V/Phase)::	400V 2Phase Or Thers
Power(KW):	3kw-18kw	Type Of Temperature Control:	PT100 Or J Type
Application:	Semiconductor, Solar, MEMs, And Other Technological Industries	Frame Material:	PTFE
Inside Material:	PFA	Cable Length:	2 Meters/3meters/others
Highlight:	PTFE Surface Immersion Tank Heaters , PFA Surface Immersion Tank Heaters , Immersion Heaters for PVDF Tanks

Ultrapure PTFE PFA Wetted Surfaces PFA Immersion Tank Heaters for PVDF Tanks

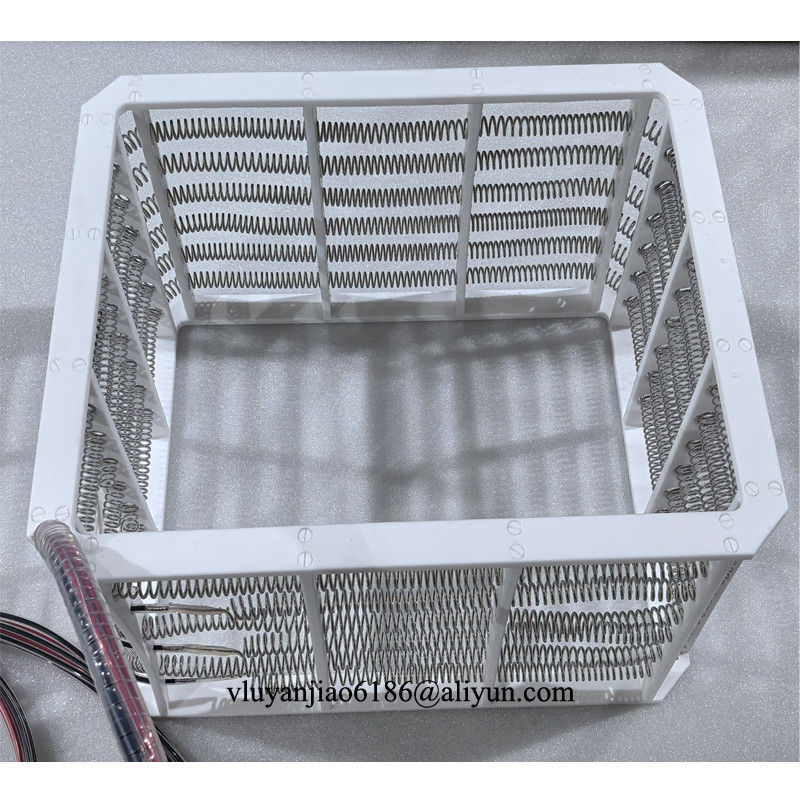

PFA immersion tank heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance. PFA immersion tank heater provide high-efficiency heating with superior temperature control and maximum power output in a compact footprint. The heaters are available in various sizes that easily fit new and existing systems common to semiconductor, solar, MEMs, and other technological industries.

Features & Benefits

Ultrapure PTFE/PFA wetted surfaces
Reliable heating of harsh chemicals
Maximum power in compact footprint
Maximum 200°C heating capability
Fast temperature response and efficiency
Each configuration capable of various voltage-to-wattage combinations
Integrate easily into most PVDF, PFA, and quartz wet process tanks
Sizes for many tank dimensions
Compact height of 1-5/8 inch
Safety features include hi-limit sensor and encapsulated ground wire
No N2 purge required

Harsh Chemicals & DI Water

These rugged and durable heaters come in grid, frame, and fence models, with outputs of 1.0 to 30.0 kW.

They feature a low watt density (≤ 4 watts/in²) for a fast heating response.

These heaters integrate easily into most process tanks.

Provide us with your specifications and tank size, and let us build an immersion heater for you.

Other Applications

Point Of Use Heating
Point of Use (POU) Heating refers to the energy-efficient heating method of placing a small heater near the processing bath to reduce heat-up wait times.

Products For Point Of Use Heating

Applications

Semiconductor Wafer Cleaning
Etching
Inline Chemical Heating
Point of Use Heating (POU)

High-Purity PFA Inline Chemical Heater

PTFE Inline Heater

Ultrapure PTFE PFA Wetted Surface Immersion Tank Heaters for PVDF Tanks 1

Inline Chemical Heater

Ultrapure PTFE PFA Wetted Surface Immersion Tank Heaters for PVDF Tanks 2

Chemical Heating

Fluoropolymer (PTFE) heater and heating components are engineered with protection from corrosive chemicals while maintaining the highest quality and safety standards.

Chemical Heating(2)

HXT SERIES – SCREWPLUG
Low watt density, spiral screwplug heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 1000-6000 watts, 120-600 volts.

Ultrapure PTFE PFA Wetted Surface Immersion Tank Heaters for PVDF Tanks 3

HXOL SERIES
Low watt density, flexible riser, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 1000-6000 watts, 120-600 volts.

Ultrapure PTFE PFA Wetted Surface Immersion Tank Heaters for PVDF Tanks 4

What are immersion heaters and how do they work?

An immersion heater is a device that is used to heat water or other liquids. It is a small, tubular device that is inserted into the liquid that is to be heated. The heater then warms the liquid by passing an electric current through it. Immersion heaters are a great way to heat your brewing water properly. They are quick and easy to use, and they can heat a large volume of liquid at a fast rate. This often makes them the perfect choice for heating your water for brewing.

Do immersion heaters use a lot of electricity?

A typical immersion heater uses three kilowatts of electricity an hour, so it will cost the average house about 50p an hour to run.
