PTFE Immersion Heat Exchanger for Acid Bath with Large Heat Transfer Area

Large Image : PTFE Immersion Heat Exchanger for Acid Bath with Large Heat Transfer Area

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001,CE
Model Number:	PTFE HE-022

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	T/T,
Supply Ability:	50 PC/Month

Contact Now

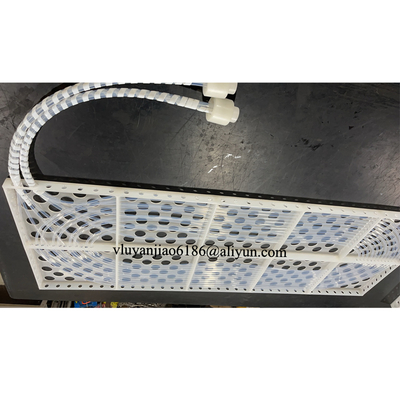

PTFE Immersion Heat Exchanger for Acid Bath with Large Heat Transfer Area

Description

Name:	Large Heat Transfer Area Immersion PTFE Heat Exchanger For An Acid Bath	Frame Material:	PTFE,PP,PVC,PVDF
Tube Material:	PFA,PTFE,FEP	Connections:	1/2" FNPT Or Others
Pressure:	30 PSI	Size:	Can Designed As Requirements
Highlight:	PTFE immersion heat exchanger for acid , large heat transfer area PTFE exchanger , PTFE acid bath heat exchanger

Large Heat Transfer Area Immersion PTFE Heat Exchanger For An Acid Bath

Plastic immersion type heat exchangers are essential components in the surface finishing and chemical process industries

Excellent chemical compatibility and rugged design for your heating or cooling application.

Fluoroplastic heat exchangers:

We also deliver fluoroplastic heat exchangers. These heat exchangers are made of fluoroplastics such as PTFE, FEP an PFA. Fluoroplastics are fully resistant against corrosive liquids and have very good non-stick properties. This means there is no building up of pollution and it reduces fouling and scaling. Fluoroplastics are pure and contain no softeners or plasticisers and are therefore very suitable for handling ultra-high-pure (UHP) applications in the semi-conductor industry.

All types of fluoroplastic heat exchanger units feature a proven unique honeycomb structure. The tubes are integrated in the pipe sheet which p

Advantages of SURPLUS Fluoroplastic Heat Exchangers:

1. Superior corrosion resistance to most acids and solutions.

2. Large heat transfer surface in a confined space.

3. All-plastic design with no elastomers, seals or mechanical joints.

4. Plastic design eliminates effect of stray current in plating applications.

5. Open flow tube bundle–tubes do not touch.

6. Exceptionally low fouling factors.

7. Tough, impact resistant tubes, not capillary-type tubing.

8. Low pressure drops enhancing turbulent flow resulting in maximized heat transfer capability.

9. Handle steam up to 35 psig saturated.

10. Easily repaired at plant site with a hot air welding gun.

ovides a lightweight compact bundle design. This ensures a leak free flow of the process liquids. Teflon heat exchangers are almost maintenance free and have a very long lifetime.

Others Applications

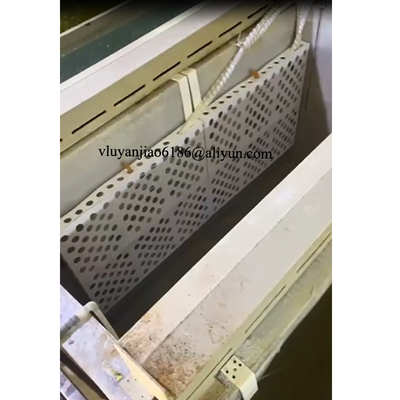

Acid Heating And Corrosive Chemical Heating

Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, Process Technology fluoropolymer (PTFE) heaters and exchangers are engineered to perform.

Acid Heating And Corrosive Chemical Heating(1)

3HX Series PTFE Immersion Heat Exchanger for Acid Bath with Large Heat Transfer Area 0

HXT SERIES – SCREWPLUG

PTFE Immersion Heat Exchanger for Acid Bath with Large Heat Transfer Area 1

9HX SERIES

PTFE Immersion Heat Exchanger for Acid Bath with Large Heat Transfer Area 2

6HX SERIES

PTFE Immersion Heat Exchanger for Acid Bath with Large Heat Transfer Area 3

3HXOL SERIES PTFE Immersion Heat Exchanger for Acid Bath with Large Heat Transfer Area 4

HXSL SERIES

PTFE Immersion Heat Exchanger for Acid Bath with Large Heat Transfer Area 5
