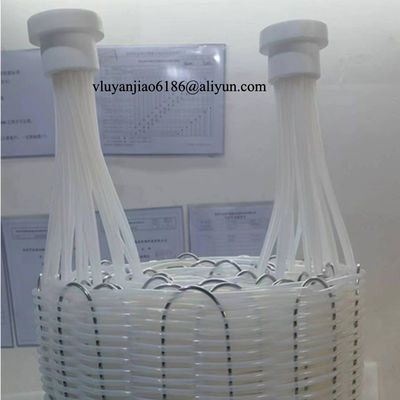

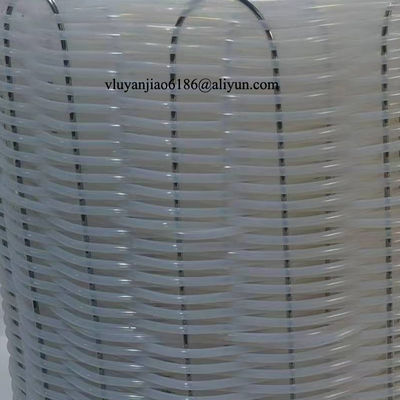

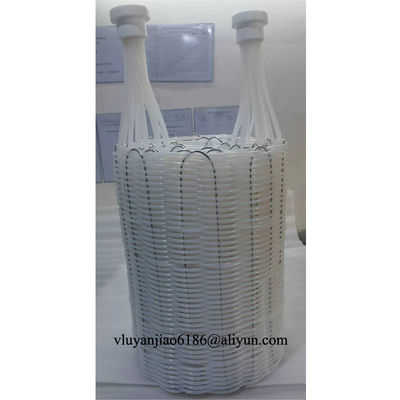

Immersion Coils PTFE Heat Exchanger For Used In Ultra-pure Manufacturing Processes
PVDF/PFA heat exchangers offer a variety of solutions for heating, cooling, and temperature trimming of fluids used in ultra-pure manufacturing processes.
They are ideal for heating and cooling deionized water, solvents, and Piranha/SC1, among other fluids.
These heaters come either as standalone heat exchangers, or as an integrated heater or heat exchanger.
Models are available for 2-5 kW, and voltages from 200-480 VAC, 1-phase. Ambient temperatures are 95º C (203º F) for the shell, and 180º C (356º F) for the tubes.
Excellent chemical compatibility and rugged design for your heating or cooling application.
All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction.
Eliminates stray currents.
PFA coils are available for steam service up to 60 PSI.
10 PSI minimum steam pressure required for operation.
Robust Design
The Coil is designed to eliminate stray currents in tanks and offers excellent chemical compatibility with a rugged design ideal for heating or cooling applications.
All wetted parts are constructed from durable fluoropolymer materials (FEP, PFA, or PTFE), ensuring superior performance and longevity.
The heavy-duty CPVC mounting bracket provides robust support, while standard FEP coils are rated for up to 30 PSI steam service, and PFA coils can handle up to 60 PSI steam pressure.
The coil’s heavy wall tubing improves circulation, reduces pressure drop, and a 1/8-inch perforated guard offers protection from damage.
Integral inlet/outlet connections reduce potential leaks, ensuring reliable operation.
Vacuum breakers are recommended for fluoropolymer heat coil steam heating installations.
Features & Values
All wetted parts of fluoropolymer(FEP,PFA or PTFE) construction with a heavy duty CPVC mounting bracket.
Heavy wall tubing improves circulation and minimizes pressure drop. Larger coils constructed of 1/2 inch(13mm) tubing, smaller coils have 1/4 inch(7mm) tubing.
Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation.
Eliminates stray currents in the tank.
Industries
- Semiconductor Fabrication
- Solar Cell Manufacturing
- Flat-Panel Display, LEDs & Electronics
- Chemicals Manufacturing
- Industrial Manufacturing
Others Applications
Ultra-High-Purity Heating
Designed with Ultra-High-Purity processes in mind, Surplus delivers clean-room assembled, reliable heating and power solutions to fit specific needs.
