220120490mm Welded PTFE Bath PTFE Wet Process Tanks For Semiconductor Industry

Large Image : 220*120*490mm Welded PTFE Bath PTFE Wet Process Tanks For Semiconductor Industry

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001,CE
Model Number:	PTFE Tank 023

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	T/T,
Supply Ability:	50 PC/Month

Contact Now

220120490mm Welded PTFE Bath PTFE Wet Process Tanks For Semiconductor Industry

Description

Name:

220*120*490mm Welded PTFE Bath PTFE Wet Process Tanks For Semiconductor Industry

Material:

PTFE

Production Process:

Double-sided Welding

Dimension:

According Customer's Requirement

Highlight:

Semiconductor Industry PTFE Wet Tanks

220120490mm PTFE Wet Process Tanks

Welded PTFE Wet Process Tanks

**220120490mm Welded PTFE Bath PTFE Wet Process Tanks For Semiconductor Industry**

Welded PTFE Bath PTFE Wet Process Tanks For Semiconductor Industry are available in a comprehensive range of dimensions and volumes that meet comprehensive requirements.

In addition to this standard program, PTFE tanks can be produced with different sizes or wall thicknesses and also with changed flange designs on the customer’s request.

Any number of seamlessly integrated supply and drain ports in any placement and design can be added as well

The wall and floor thicknesses of the rectangular and circular tanks are 10 to 12 mm by default.

The flange dimensions are 20 mm wide (including tank wall) and 15 mm high.

The tanks can be made either of the classical, tried-and-tested material PTFE, or of modified PTFE.

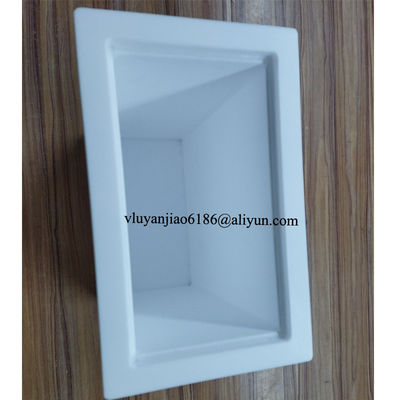

220*120*490mm Welded PTFE Bath PTFE Wet Process Tanks For Semiconductor Industry 0

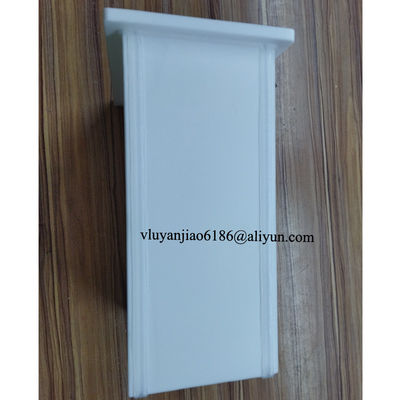

220*120*490mm Welded PTFE Bath PTFE Wet Process Tanks For Semiconductor Industry 1

Accessories

A wide range of accessories, such as supply and drain ports can be seamlessly integrated into the tank, supply blocks, water-jet pumps, supports, or hinged lids of PTFE are part of the offer. The product range comprises a comprehensive range of accessories to supplement the electronic control units and permit implementation of even complex process solutions. With comprehensive industry and process competence, we are available to answer any questions in the planning stage.

Specifications

Model	PTFE Process Tank
Tank Material	PTFE (thickness dependent on tank size)
Construction	Folded corner origami, flushed weld seams
Connections	PFA Flared stems standard
Max. operating temperature	100-200°C*
Optional Cooling Coils	Corrugated PFA tube
Limited Warranty	One Year

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Others Applications

Precious Metal Deposition
Engineered to meet the most stringent requirements, accurate and reliable Heaters in Precious Metals' Deposition reduce materials waste. Low ripple Power Supplies provide clean and smooth direct current (DC), precision results while also saving on materials.

Products For General Metal Finishing

MOTS SINGLE
MOTS Single Heater – Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.

220*120*490mm Welded PTFE Bath PTFE Wet Process Tanks For Semiconductor Industry 2

MOTS SINGLE – DAS, PHOSPHATE
MOTS Single DAS Phosphate Heater – Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.

220*120*490mm Welded PTFE Bath PTFE Wet Process Tanks For Semiconductor Industry 3

MOTS TRIPLE – L SHAPED, DERATED
Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.

220*120*490mm Welded PTFE Bath PTFE Wet Process Tanks For Semiconductor Industry 4

MOTS SINGLE – BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

. 220*120*490mm Welded PTFE Bath PTFE Wet Process Tanks For Semiconductor Industry 5

MOTS TRIPLE – L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

220*120*490mm Welded PTFE Bath PTFE Wet Process Tanks For Semiconductor Industry 6

6HS SERIES – TUBULAR
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

220*120*490mm Welded PTFE Bath PTFE Wet Process Tanks For Semiconductor Industry 7
