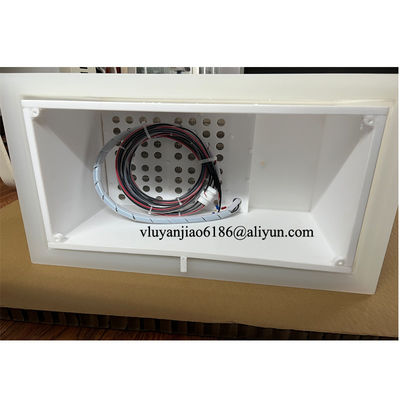

Customizable Outer PP Inner PTFE Wet Process Tank With 3KW Heater For Wet Etching

Large Image : Customizable Outer PP Inner PTFE Wet Process Tank With 3KW Heater For Wet Etching

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001,CE
Model Number:	PTFE Tank 20

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	T/T,
Supply Ability:	50 PC/Month

Contact Now

Customizable Outer PP Inner PTFE Wet Process Tank With 3KW Heater For Wet Etching

Description

Name:

PTFE Machining Part Outer PP Inner PTFE Wet Process Tank For Etching With 3KW PTFE Heater

Material:

PTFE

Production Process:

One-piece Molding Or Double-sided Welding

Dimension:

According Customer's Requirement

Highlight:

PTFE Tank With 3KW Heater

PTFE Wet Etching Tank

Customizable PTFE Tanks

PTFE Machining Part Outer PP Inner PTFE Wet Process Tank For Etching With 3KW PTFE Heater

Overview

Product Name	PTFE Tank
Category	Integrated PTFE tank; and Welding PTFE tank
Processing	Moulding, Welding, and CNC processing
Temperature	-180 ~ 260℃
Material	100% raw PTFE material
Size	Custom. Max size: 1500X2000X700
Properties	Corrosion resistance, high and low temperature resitance, aging resistance, dielectric and insoluating, self-lubrication, non-adhesive, non-flammable, non-toxic.
Application	Semiconductor cleaning, Chemical reaction, Corrosion liquid tank, etc.
Package	Carton, Wooden Pallet, support custom package
MOQ	1 pcs

Surplus designed process and rinse tanks are constructed from a single sheet of application specific plastic material that is CNC machined and then folded into the form of your tank using the “ORIGAMI” method. Welded corners can create particle/contamination traps and can leak due to workmanship, thermal cycling, and/ or prolonged chemical exposure. However, the “ORIGAMI” method minimizes welding and provides smooth, seamless, rounded interior corners.

The “ORIGAMI” design and fabrication approach combined with over 40 years of wet process experience provides optimum process and rinse results at the lowest possible cost.

PTFE tanks are available in configurations for all substrate and cassette sizes in standard or custom designs. Review your tank application and requirements with our sales staff to receive a cost-effective quotation in a timely manner. Sales drawings of standard tanks are available upon request.

PTFE Wet Process tank Features:

Custom-mode product to be manufactured by our experienced welders to the
satisfaction of the customer. The maximum size we delivered is 2.0 m × 2.5 m × 2.0 m.

PTFE Wet Process tank Main applications:

• Washing tank (Silicon wafer etc.)
• Washing tank for temperature control
• Storage of chemical

PTFE Wet Process tank Characteristics:

• The mold is not required, and is economical for smaller lots.
• Free designs are possible to meet various needs.

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Other Applications

Flammable Solvent Heating
Products designed to safely heat IPA and low flash-point solvents, meeting the most stringent cleanliness requirements to support next-generation semiconductor node technologies.

Products For Flammable Solvent Heating

PFA Inline Chemical Heater

PTFE Inline Chemical Heater

Customizable Outer PP Inner PTFE Wet Process Tank With 3KW Heater For Wet Etching 1

Inline Chemical Heater

Customizable Outer PP Inner PTFE Wet Process Tank With 3KW Heater For Wet Etching 2

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition

Products(2)

MOTS TRIPLE – VERTICAL
MOTS Triple Vertical: L-shaped, vertical metal over the side heater. 3,000-36,000 watts, 208-600 volts.

Customizable Outer PP Inner PTFE Wet Process Tank With 3KW Heater For Wet Etching 3

9HS SERIES – TUBULAR
9HS PTFE Heater: Over the side, 9 element, tubular heater. Three phase. 9000-31500 watts, 208-600 volts.

Customizable Outer PP Inner PTFE Wet Process Tank With 3KW Heater For Wet Etching 4

V SERIES – VARIPOWER
Metal or Fluoropolymer (PTFE) sheath heater. Single phase. Heats up to 212°F (100°C). 100-1000 watts, 120-240 volts.

Customizable Outer PP Inner PTFE Wet Process Tank With 3KW Heater For Wet Etching 5
