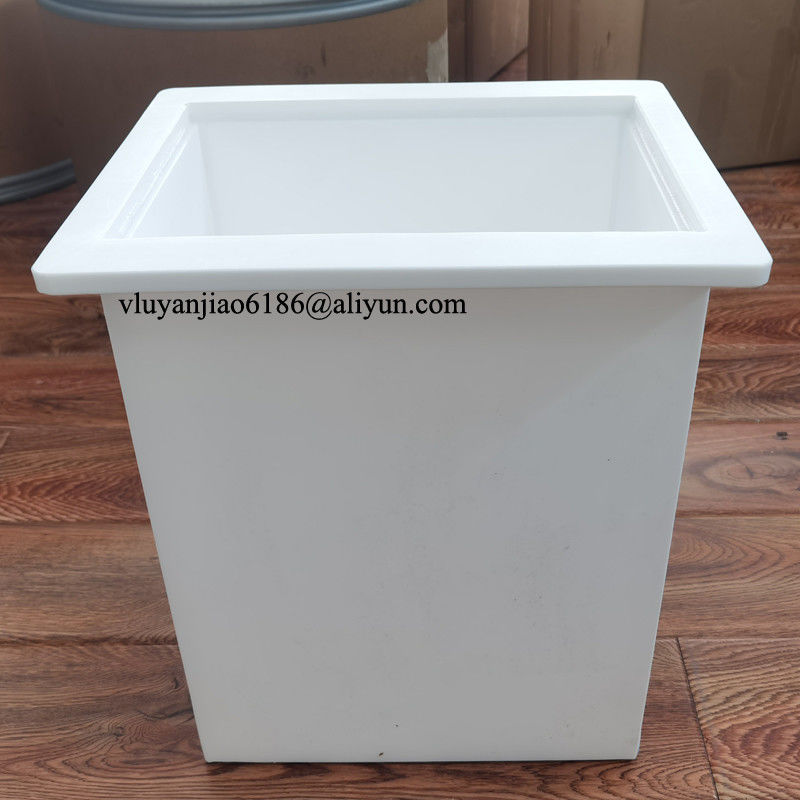

PTFE Teflon Lined Chemical Tank Corrosion Resistance Custom Thickness

Large Image : PTFE Teflon Lined Chemical Tank Corrosion Resistance Custom Thickness

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001,CE
Model Number:	PTFE Tank 04

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	T/T,
Supply Ability:	50 PC/Month

Contact Now

PTFE Teflon Lined Chemical Tank Corrosion Resistance Custom Thickness

Description

Name:

PTFE Manufacturer CNC Fluoroplastic Project Corrosion Resistance Engineering Plastic PTFE Raw Material Custom PTFE Parts F4 Tank

Material:

PTFE

Production Process:

One-piece Molding Or Double-sided Welding

Dimension:

According Customer's Requirement

Highlight:

Custom Thickness Teflon Tank

Corrosion Resistance PTFE Chemical Tank

PTFE Manufacturer CNC Fluoroplastic Project Corrosion Resistance Engineering Plastic PTFE Raw Material Custom PTFE Parts F4 Tank

Overview

Surplus designed process and rinse tanks are constructed from a single sheet of application specific plastic material that is CNC machined and then folded into the form of your tank using the “ORIGAMI” method. Welded corners can create particle/contamination traps and can leak due to workmanship, thermal cycling, and/ or prolonged chemical exposure. However, the “ORIGAMI” method minimizes welding and provides smooth, seamless, rounded interior corners.

The “ORIGAMI” design and fabrication approach combined with over 40 years of wet process experience provides optimum process and rinse results at the lowest possible cost.

PTFE tanks are available in configurations for all substrate and cassette sizes in standard or custom designs. Review your tank application and requirements with our sales staff to receive a cost-effective quotation in a timely manner. Sales drawings of standard tanks are available upon request.

Custom PTFE Tank High temperature PTFE Groove Chemical Resistance PTFE Container Integrated Welding Plastic Tank Features:

Custom-mode product to be manufactured by our experienced welders to the
satisfaction of the customer. The maximum size we delivered is 2.0 m × 2.5 m × 2.0 m.

Custom PTFE Tank High temperature PTFE Groove Chemical Resistance PTFE Container Integrated Welding Plastic Tank Main applications:

• Washing tank (Silicon wafer etc.)
• Washing tank for temperature control
• Storage of chemical

Custom PTFE Tank High temperature PTFE Groove Chemical Resistance PTFE Container Integrated Welding Plastic Tank Characteristics:

• The mold is not required, and is economical for smaller lots.
• Free designs are possible to meet various needs.

Specifications

Model	PTFE Process Tank
Tank Material	PTFE (thickness dependent on tank size)
Construction	Folded corner origami, flushed weld seams
Connections	PFA Flared stems standard
Max. operating temperature	100-200°C*
Optional Cooling Coils	Corrugated PFA tube
Limited Warranty	One Year

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Other Applications

Electro-Polishing
Electro-polishing (Electropolishing) involves using electricity and chemical reactions to remove ions from the surface to deburr and reduce the surface roughness for a smooth, level, and clean surface, free of irregularities. Surplus power supplies deliver full power supply output performance, high efficiency, high-speed, DC output, connectivity, reliability, and ETL certification.

Products For Electro-Polishing

9HX SERIES
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.
PTFE Teflon Lined Chemical Tank Corrosion Resistance Custom Thickness 0

6HX SERIES
Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.
PTFE Teflon Lined Chemical Tank Corrosion Resistance Custom Thickness 1

3HXOL SERIES

Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.

PTFE Teflon Lined Chemical Tank Corrosion Resistance Custom Thickness 2

HXF SERIES
Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.
PTFE Teflon Lined Chemical Tank Corrosion Resistance Custom Thickness 3

HX SERIES
Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . Single phase. 500-9000 watts, 120-600 volts.
PTFE Teflon Lined Chemical Tank Corrosion Resistance Custom Thickness 4

3HX SERIES
Low watt density, 3 element heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 1000-6000 watts, 120-600 volts.

PTFE Teflon Lined Chemical Tank Corrosion Resistance Custom Thickness 5
