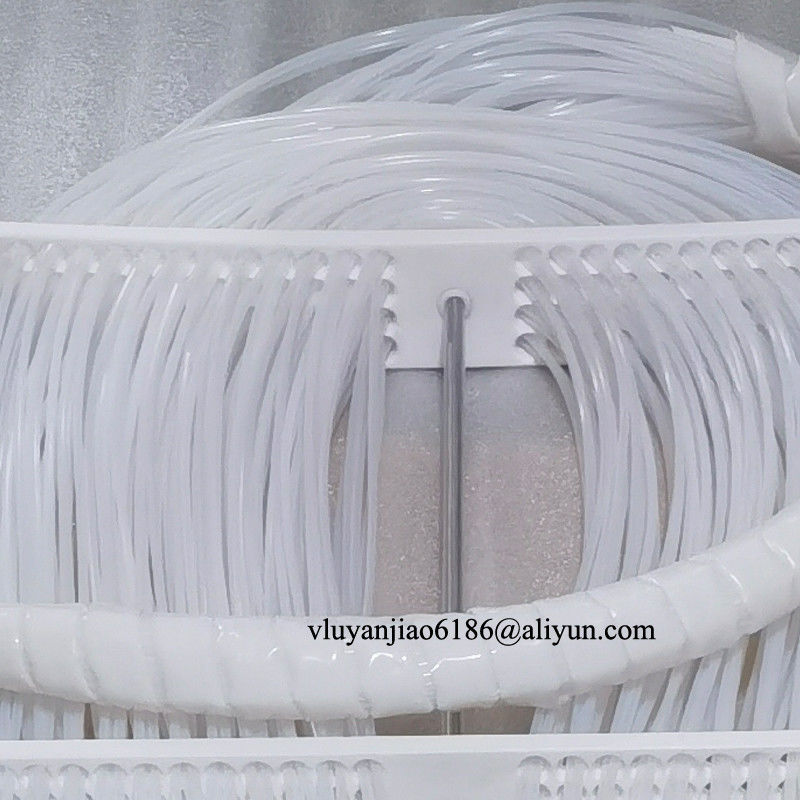

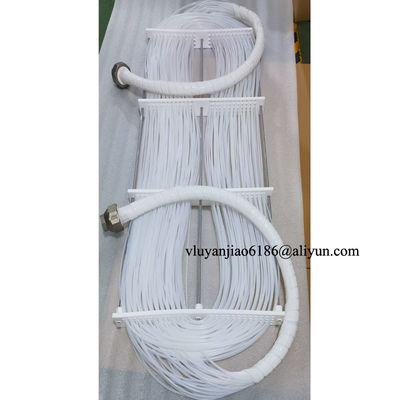

1, PTFE heat exchanger in order to achieve excellent heat dissipation effect mostly use cluster tube structure, generally use capillary tube as a heat exchange tube, tube outer diameter of 4.5-8 mm according to the required heat exchange area design of the number of tubes, from dozens to hundreds of tubes!

2, the frame material is generally based on the use of the environment, respectively, PP, PVC, PVDF material. There are also three grades of PTFE, PFA and FEP to choose.

3, the difference between different materials, frame material PP, PVDF suitable for circulation medium for hot water, ice water or steam heating temperature within 70 ° C heat exchanger, PVDF suitable for steam as the heating medium heat exchanger, the heating medium does not exceed 150 ° C liquid.

4, the heat exchanger adopts Teflon thin-wall capillary structure, good thermal conductivity, good pressure resistance, stable work, anti-aging long service life and other characteristics, suitable for a variety of highly corrosive liquid heat exchange device.

5, this product uses capillary tubes, in order to avoid blocking the pipeline use should be configured in front of the inlet pipe decompression and filter, to ensure the use of effect!

Industries

• Semiconductor Fabrication
• Solar Cell Manufacturing
• Flat-Panel Display, LEDs & Electronics
• Chemicals Manufacturing
• Industrial Manufacturing

Other Applications

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition Products(2)
MOTS TRIPLE – VERTICAL MOTS Triple Vertical: L-shaped, vertical metal over the side heater. 3,000-36,000 watts, 208-600 volts. .	9HS SERIES – TUBULAR 9HS PTFE Heater: Over the side, 9 element, tubular heater. Three phase. 9000-31500 watts, 208-600 volts.	V SERIES – VARIPOWER Metal or Fluoropolymer (PTFE) sheath heater. Single phase. Heats up to 212°F (100°C). 100-1000 watts, 120-240 volts.
MOTS SINGLE MOTS Single Heater – Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.	MOTS SINGLE – DAS, PHOSPHATE MOTS Single DAS Phosphate Heater – Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.	MOTS TRIPLE – L SHAPED, DERATED Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.
