PFA Ultrapure Tank Immersion Heaters 9 X 5 In 2.5KW 220VAC 1 Phase

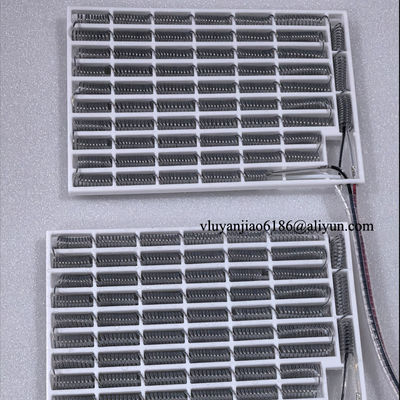

Large Image : PFA Ultrapure Tank Immersion Heaters 9 X 5 In 2.5KW 220VAC 1 Phase

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PFA Immersion Tank Heater 18

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

PFA Ultrapure Tank Immersion Heaters 9 X 5 In 2.5KW 220VAC 1 Phase

Description

Name:	9 X 5 In 2.5KW 220VAC 1 Phase PFA Immersion Tank Heaters For Ultrapure Process Tanks	Supply Voltage (V/Phase)::	220V-480V
Power(KW):	3kw-18kw	Type Of Temperature Control:	PT100 Or J Type
Application:	Semiconductor, Solar, MEMs, And Other Technological Industries	Frame Material:	PTFE
Inside Material:	PFA	Cable Length:	2 Meters/3meters/others
Highlight:	PFA Ultrapure Tank Immersion Heaters , 2.5KW Ultrapure Tank Immersion Heaters , 1 Phase Tank Immersion Heaters

9 x 5 In 2.5KW 220VAC 1 Phase PFA Immersion Tank Heaters For Ultrapure Process Tanks

PFA immersion tank heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance. PFA immersion tank heater provide high-efficiency heating with superior temperature control and maximum power output in a compact footprint. The heaters are available in various sizes that easily fit new and existing systems common to semiconductor, solar, MEMs, and other technological industries.

Features & Benefits

Ultrapure PTFE/PFA wetted surfaces
Reliable heating of harsh chemicals
Maximum power in compact footprint
Maximum 200°C heating capability
Fast temperature response and efficiency
Each configuration capable of various voltage-to-wattage combinations
Integrate easily into most PVDF, PFA, and quartz wet process tanks
Sizes for many tank dimensions
Compact height of 1-5/8 inch
Safety features include hi-limit sensor and encapsulated ground wire
No N2 purge required

Specifications

Heater Element	Heating Coil
Wetted Surfaces	PFA/PTFE
Wattages	1.0 – 20 kW
Voltages	120 – 480 VAC 1 or 3 phase
Sizes (LxW)	7x5 to 19x14 inch
Height	1-5/8 inch
Temperature	200°C (392°F)
Hi-Limit Sensor	Type-J thermocouple
Ground Wire	Encapsulated
Lead Wire	15-ft

Dimensions

Model	kW	Height	Benefits
Grid	1-6 kW*	3/4 in	Low Profile Design
Frame	1-30 kW	1-1/2 in	Low Profile Design for Higher kW's
Fence	1-10 kW	Variable	Heater on side of tank leaving center of tank open

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Other Applications

Ultra-High-Purity Heating
Designed with Ultra-High-Purity processes in mind, Surplus delivers clean-room assembled, reliable heating and power solutions to fit specific needs.

Products For Ultra-High-Purity Heating

Inline Heater

PFA Inline Heater

Inline Chemical Heater

Flammable Solvent Heating
Products designed to safely heat IPA and low flash-point solvents, meeting the most stringent cleanliness requirements to support next-generation semiconductor node technologies.

Products For Flammable Solvent Heating

PFA Inline Chemical Heater

PTFE Inline Chemical Heater
