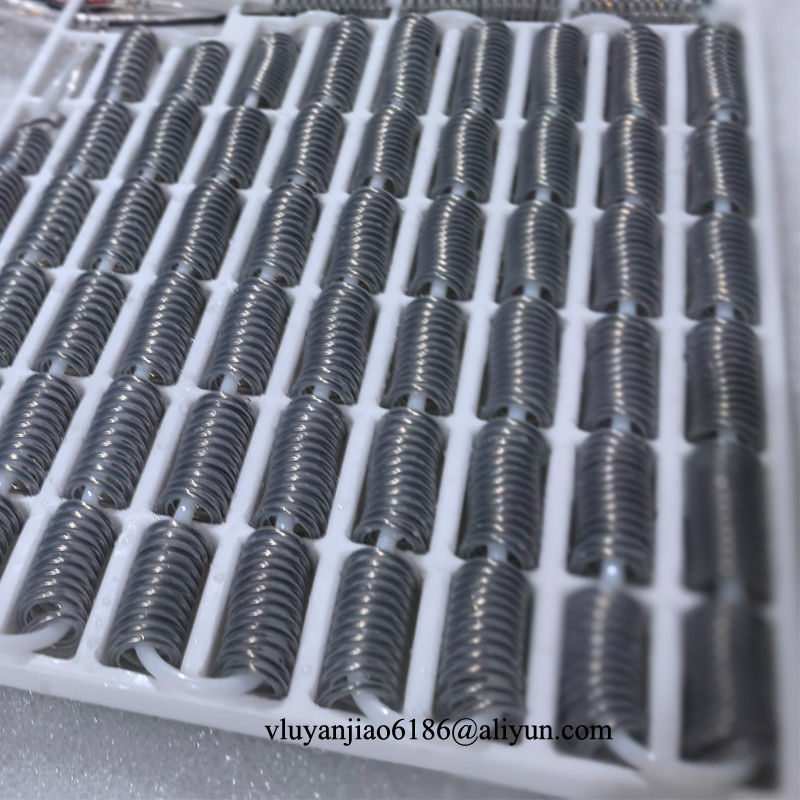

Industrial PFA Immersion Tank Heaters , Harsh Chemicals Immersion Water Heater Coil

Large Image : Industrial PFA Immersion Tank Heaters , Harsh Chemicals Immersion Water Heater Coil

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PFA Immersion Tank Heater 16

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

Industrial PFA Immersion Tank Heaters , Harsh Chemicals Immersion Water Heater Coil

Description

Name:	Each Configuration Capable Of Various Voltage-to-wattage Combinations PFA Immersion Tank Heaters	Supply Voltage (V/Phase)::	220V-480V
Power(KW):	3kw-18kw	Type Of Temperature Control:	PT100 Or J Type
Application:	Semiconductor, Solar, MEMs, And Other Technological Industries	Frame Material:	PTFE
Inside Material:	PFA	Cable Length:	2 Meters/3meters/others
Highlight:	Chemicals PFA Immersion Tank Heaters , PFA Immersion Water Heater Coil , Industrial Immersion Tank Heater

Each Configuration Capable Of Various Voltage-to-wattage Combinations PFA Immersion Tank Heaters

PFA immersion tank heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance. PFA immersion tank heater provide high-efficiency heating with superior temperature control and maximum power output in a compact footprint. The heaters are available in various sizes that easily fit new and existing systems common to semiconductor, solar, MEMs, and other technological industries.

Features & Benefits

Ultrapure PTFE/PFA wetted surfaces
Reliable heating of harsh chemicals
Maximum power in compact footprint
Maximum 200°C heating capability
Fast temperature response and efficiency
Each configuration capable of various voltage-to-wattage combinations
Integrate easily into most PVDF, PFA, and quartz wet process tanks
Sizes for many tank dimensions
Compact height of 1-5/8 inch
Safety features include hi-limit sensor and encapsulated ground wire
No N2 purge required

Specifications

Heater Element	Heating Coil
Wetted Surfaces	PFA/PTFE
Wattages	1.0 – 20 kW
Voltages	120 – 480 VAC 1 or 3 phase
Sizes (LxW)	7x5 to 19x14 inch
Height	1-5/8 inch
Temperature	200°C (392°F)
Hi-Limit Sensor	Type-J thermocouple
Ground Wire	Encapsulated
Lead Wire	15-ft

Dimensions

Model	kW	Height	Benefits
Grid	1-6 kW*	3/4 in	Low Profile Design
Frame	1-30 kW	1-1/2 in	Low Profile Design for Higher kW's
Fence	1-10 kW	Variable	Heater on side of tank leaving center of tank open

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Other Applications

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition

Products(1)

B SERIES – SMALL TANK
Small metal over the side heater. Excellent for laboratory and small tank applications. Heats up to 300°F (149°C). Single phase. 500-1500 watts, 120-240 volts..

Industrial PFA Immersion Tank Heaters , Harsh Chemicals Immersion Water Heater Coil 0

3HS SERIES – TUBULAR
Over the side, 3 element, tubular heater. Three phase. Three phase. 3000-10500 watts, 208-600 volts.

Industrial PFA Immersion Tank Heaters , Harsh Chemicals Immersion Water Heater Coil 1

MOTS SINGLE – DERATED
Derated, low watt density, metal over the side heater. Single or three phase. 500-6000 watts, 120-600 volts.

Industrial PFA Immersion Tank Heaters , Harsh Chemicals Immersion Water Heater Coil 2

HXF SERIES
Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.

Industrial PFA Immersion Tank Heaters , Harsh Chemicals Immersion Water Heater Coil 3

FLS SERIES FLANGE HEATER
Metal flanged heater, 3″, 5″ and 6″ flange sizes. 3000-72000 watts, 208-600 volts.
Industrial PFA Immersion Tank Heaters , Harsh Chemicals Immersion Water Heater Coil 4

U SERIES COIL

Metal Immersion Coil in U shape for chemical heating or cooling requiring minimal recovery time. Available in steel, 316 stainless steel and titanium.

Industrial PFA Immersion Tank Heaters , Harsh Chemicals Immersion Water Heater Coil 5
