Customizable Compact PFA Immersion Tank Heaters For RO DI Water Heating

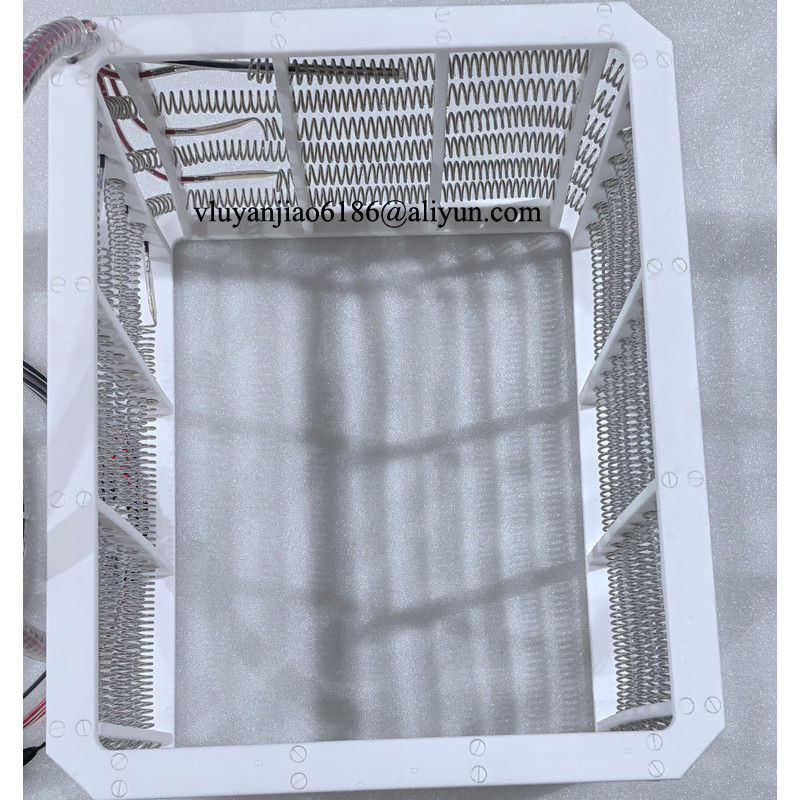

Large Image : Customizable Compact PFA Immersion Tank Heaters For RO DI Water Heating

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PFA Immersion Tank Heater 13

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

Customizable Compact PFA Immersion Tank Heaters For RO DI Water Heating

Description

Name:	Compact Footprint PFA Immersion Tank Heaters For DI Water	Supply Voltage (V/Phase)::	400V 2Phase Or Thers
Power(KW):	3kw-18kw	Type Of Temperature Control:	PT100 Or J Type
Application:	Semiconductor, Solar, MEMs, And Other Technological Industries	Frame Material:	PTFE
Inside Material:	PFA	Cable Length:	2 Meters/3meters/others
Highlight:	DI Water Immersion Tank Heaters , RO Water Immersion Tank Heaters , Customizable PFA Immersion Tank Heaters

Maximum Power Output In A Compact Footprint PFA Immersion Tank Heaters For DI Water

PFA immersion tank heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance. PFA immersion tank heater provide high-efficiency heating with superior temperature control and maximum power output in a compact footprint. The heaters are available in various sizes that easily fit new and existing systems common to semiconductor, solar, MEMs, and other technological industries.

Features & Benefits

Ultrapure PTFE/PFA wetted surfaces
Reliable heating of harsh chemicals
Maximum power in compact footprint
Maximum 200°C heating capability
Fast temperature response and efficiency
Each configuration capable of various voltage-to-wattage combinations
Integrate easily into most PVDF, PFA, and quartz wet process tanks
Sizes for many tank dimensions
Compact height of 1-5/8 inch
Safety features include hi-limit sensor and encapsulated ground wire
No N2 purge required

Harsh Chemicals & DI Water

These rugged and durable heaters come in grid, frame, and fence models, with outputs of 1.0 to 30.0 kW.

They feature a low watt density (≤ 4 watts/in²) for a fast heating response.

These heaters integrate easily into most process tanks.

Provide us with your specifications and tank size, and let us build an immersion heater for you.

Specifications

Heater Element	Heating Coil
Wetted Surfaces	PFA/PTFE
Wattages	1.0 – 20 kW
Voltages	120 – 480 VAC 1 or 3 phase
Sizes (LxW)	7x5 to 19x14 inch
Height	1-5/8 inch
Temperature	200°C (392°F)
Hi-Limit Sensor	Type-J thermocouple
Ground Wire	Encapsulated
Lead Wire	15-ft

Other Applications

RO/DI Water Heating
Deionized water (DI Water) has become a crucial part of many industrial process applications' impurity removal process. Cleaning semiconductors or other ultra-clean end-use devices requires the highest level of purity to reduce product failure.

Products For RO/DI Water Heating

Applications

Semiconductor
Flat Panel Display

Heating Systems for Purified, DI Water

PTFE Inline Chemical Heater
