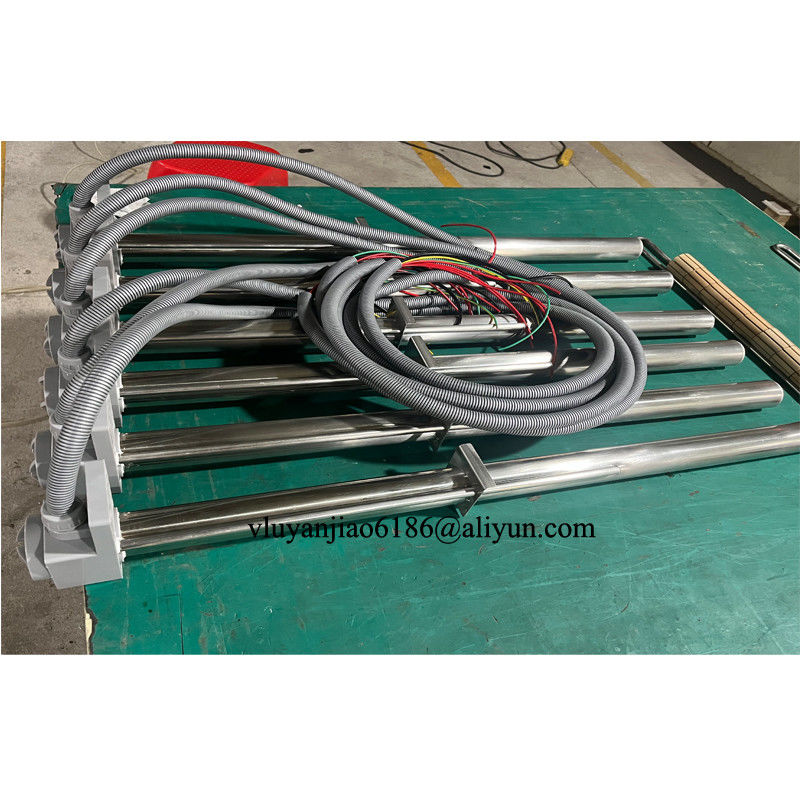

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant

Large Image : 220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	metal immersion heater 08

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant

Description

Supply Voltage (V/Phase)::	110-120 Volt, 200-240 Volt, And 380-480 Volt.	Power(KW):	1,000 Watts (1kW) To 6,000 Watts (6kW).
Dimension:	According Customer's Requirement	Type Of Temperature Control:	PT100 Or J Type
Application:	Process Heating, Power, Chemical, Oil And Gas, Pharmaceuticals, Metals Processing To The Food & Beverage Industry	Material:	SUS316 Or Titanium
Cable Length:	2 Meters/3meters/others
Highlight:	220V 1P Metal Immersion Heaters , Metal Immersion Heaters 2KW , High Temperature Resistant Immersion Heaters

220V 1P 2KW SUS316 Metal Immersion Heaters

Electric Immersion Heaters are most suitable for direct heating of nearly all process liquids and corres- ponding applications.

Excellent chemical resistance is ensured by the use of different immersion tube materials and variable fitting options help you to meet the individual re- quirements of heating installations.

A long life span with optimum reli- ability is assured by using high qual- ity materials thereby ensuring fault- less operation of your system.

Electric Immersion heater is constructed on a modular basis and consists of a tube, a long-life heat- ing cartridge, a terminal casing and the lead.

The Immersion Heater Tube

We can offer you the optimum ma- terial for every application. The heated length (minimum immersion depth) is marked by a ring which is generally two-thirds of the tube length. The tube is not heated above this mark. The heated portion must always be covered with liquid even in the case of high liquid level fluc- tuation.

The Long-Life Heating Cartridge

Long-life heating cartridges are made from ceramic groove bodies with high electrical insulation values and good mechanical strength.

A high temperature resistance heat- ing wire is fitted as a coil in order to achieve the best possible heat radiation from tube to liquid. The cartridges for immersion heaters are available in rated power voltages up to a maximum of 500 volts for one, two and three phase connections.

Others Applications

Flammable Solvent Heating
Products designed to safely heat IPA and low flash-point solvents, meeting the most stringent cleanliness requirements to support next-generation semiconductor node technologies.

Products For Flammable Solvent Heating

PFA Inline Chemical Heater

PTFE Inline Chemical Heater

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 1

Inline Chemical Heater

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 2

Anodizing
Anodizing is an electrochemical process of converting a metal surface into an oxide layer. Mainly aluminum is used for anodizing, although other nonferrous metals, such as titanium and magnesium, can also be anodized. The metal part is connected as the anode and immersed into an acid electrolyte bath, where an electric current is applied to grow the oxide layer from the piece. The resulting surface finish will provide functional properties as corrosion-resistance and durability, as well as decorative properties. Surplus heaters provide beautiful, precise finishes. Surplus power supplies deliver high current, high accuracy, and high energy efficiency to meet a modern anodizing process's requirements.

Products For Anodizing

MOTS SINGLE – BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

. 220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 3

MOTS TRIPLE – L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 4

6HS SERIES – TUBULAR
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 5

MOTS TRIPLE – DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 6

MOTS TRIPLE – DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.
220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 7

G (GRID) SERIES COIL
Efficient horizontal, vertical and L-shaped Immersion Coils for larger tanks. Available in steel, 316 stainless steel and titanium.

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 8

9HX SERIES
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.
220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 9

6HX SERIES
Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.
220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 10

3HXOL SERIES

Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 11

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition

Products(2)

MOTS TRIPLE – VERTICAL
MOTS Triple Vertical: L-shaped, vertical metal over the side heater. 3,000-36,000 watts, 208-600 volts.

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 12

9HS SERIES – TUBULAR
9HS PTFE Heater: Over the side, 9 element, tubular heater. Three phase. 9000-31500 watts, 208-600 volts.

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 13

V SERIES – VARIPOWER
Metal or Fluoropolymer (PTFE) sheath heater. Single phase. Heats up to 212°F (100°C). 100-1000 watts, 120-240 volts.

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 14

MOTS SINGLE
MOTS Single Heater – Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 15

MOTS SINGLE – DAS, PHOSPHATE
MOTS Single DAS Phosphate Heater – Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 16

MOTS TRIPLE – L SHAPED, DERATED
Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.

220V 1P 2KW SUS316 Metal Immersion Heaters High Temperature Resistant 17

PTFE Tanks

We can serve you in the teflon lined welded tank, small teflon lined vessel, mixer PTFE lined vessel and more PTFE teflon lined tank below.
Material used : PTFE, PFA, FEP, ECTFE, PVDF etched or glass backing.

Can store acid or alkali
high temperature resistance
Can custom sizes or even install PFA outlet and PFA inlet
