SUS316 Titanium Flange Electric Immersion Heaters Three Elements Customized

Large Image : SUS316 Titanium Flange Electric Immersion Heaters Three Elements Customized

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	metal immersion heater 06

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

SUS316 Titanium Flange Electric Immersion Heaters Three Elements Customized

Description

Supply Voltage (V/Phase)::	110-120 Volt, 200-240 Volt, And 380-480 Volt.	Power(KW):	1,000 Watts (1kW) To 6,000 Watts (6kW).
Dimension:	According Customer's Requirement	Type Of Temperature Control:	PT100 Or J Type
Application:	Process Heating, Power, Chemical, Oil And Gas, Pharmaceuticals, Metals Processing To The Food & Beverage Industry	Material:	SUS316 Or Titanium
Cable Length:	2 Meters/3meters/others
Highlight:	SUS316 Electric Immersion Heaters , Titanium Electric Immersion Heaters , Three Elements Titanium Immersion Heaters

SUS316/Titanium Flange Electric Process Metal Immersion Heaters

SURPLUS metal immersion heaters are designed for the demands of corrosive chemical heating, with a vast array of configurations available such as open tank, screw plug and flange. We offer sizes of metal heater as small as 500 watts for laboratory environments and as large as 50,000 watts for industrial applications.

Standard and custom configurations for over-the-side and bottom installations in open tanks. Thermal overtemperature protection standard (except screw plug), and our metal heaters have certified by CE and ISO9001:2008.

Product Descriptions:

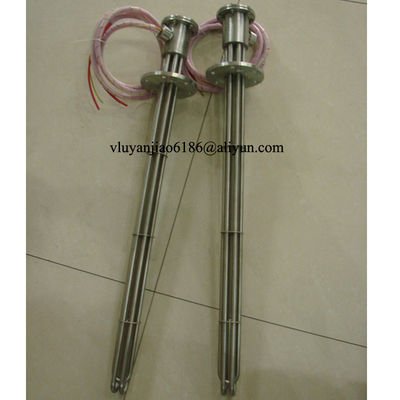

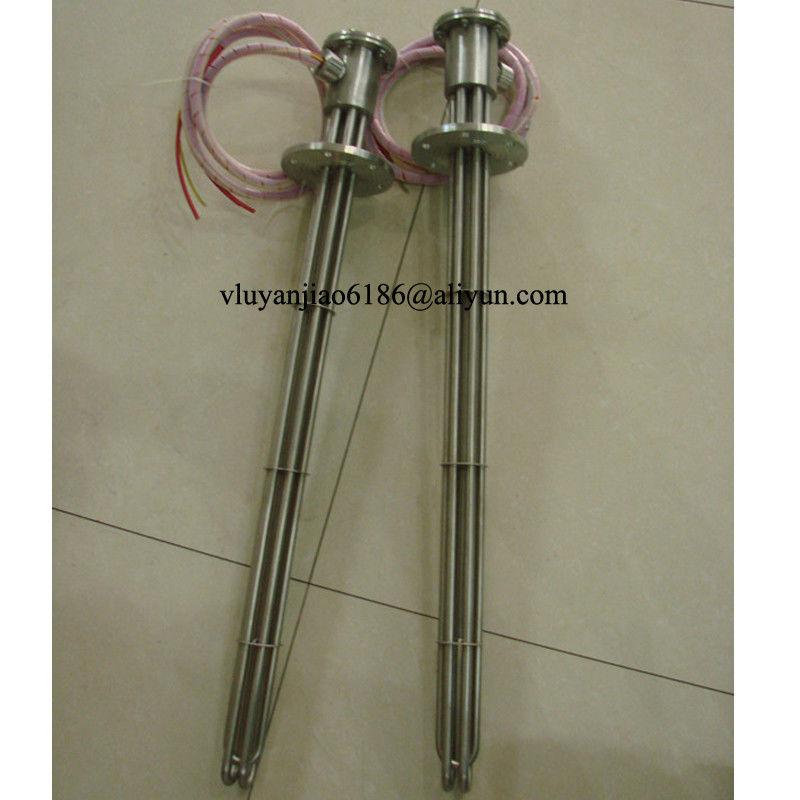

1. The metal heaters are made of titanium, sus316 or sus304 seamless tubes, three elements of diameter 50mm, in vertical shape.

2. Power of the metal heaters is designed according to the installation location, liquid chemical propoties and the deposition of the solid contents in liquid.

3. Hot-zone length of the metal heater depends on its watts; different watts, different hot-zone length. And the cold-zone length is flexible, it should be designed according to customers' equipment requests.

4. For safety design principle, the hot-zone of the metal heaters should be at least 100mm below the chemical liquid level.

5. With voltage of 110V/P, 220V/P, 380V/P, 220V/3P, 380V/3P, 415V/3P, 480V/3P and power range from 0.5KW to 36KW.

6. All metal heaters are matched with overheat protection switch or heat detector.

7. All metal heaters reach the international standard of CE certification, which insure the reliability and service life.

Features & Values

For use in most aqueous alkaline solutions, plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection

Heavy wall metal sheaths available in: steel, 304 stainlesss steel, 316 stainless steel, titanium

Watt densities up to 35 watts per square inch (5.4 w/cm2) ensure long service life

Vapor-resistant, flame retardant polypropylene termimal enclosure with 3 ft (.9m) flexible PVC liquidtight conduit.

Temperature and level controls sized to match the heater

Lower watt densities for highly viscous solutions

Specifications

Wattages : 3,000 to 36,000 Watts

Voltages: 200 to 600 Volts

Temperature Range Up to 180°C (82°F)

Safety Features

Special configurations & lengths Longer wire and conduit lengths

All metal welded junction box

Grounded construction
Thermal protector built in.

Replaceable protectorstandard for solutions up to 180°F (82°C).

Others Applications

Precious Metal Deposition
Engineered to meet the most stringent requirements, accurate and reliable Heaters in Precious Metals' Deposition reduce materials waste. Low ripple Power Supplies provide clean and smooth direct current (DC), precision results while also saving on materials.

Products For Precious Metal Deposition

MOTS SINGLE
MOTS Single Heater – Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.

SUS316 Titanium Flange Electric Immersion Heaters Three Elements Customized 0

MOTS SINGLE – DAS, PHOSPHATE
MOTS Single DAS Phosphate Heater – Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.

SUS316 Titanium Flange Electric Immersion Heaters Three Elements Customized 1

MOTS TRIPLE – L SHAPED, DERATED
Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.

SUS316 Titanium Flange Electric Immersion Heaters Three Elements Customized 2

MOTS SINGLE – BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

. SUS316 Titanium Flange Electric Immersion Heaters Three Elements Customized 3

MOTS TRIPLE – L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

SUS316 Titanium Flange Electric Immersion Heaters Three Elements Customized 4

6HS SERIES – TUBULAR
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

SUS316 Titanium Flange Electric Immersion Heaters Three Elements Customized 5

9HX SERIES
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.
SUS316 Titanium Flange Electric Immersion Heaters Three Elements Customized 6

6HX SERIES
Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.
SUS316 Titanium Flange Electric Immersion Heaters Three Elements Customized 7

3HXOL SERIES

Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.

SUS316 Titanium Flange Electric Immersion Heaters Three Elements Customized 8
