Semiconductor Process Fluid Heating Heater , PTFE Frame Inline Chemical Heaters

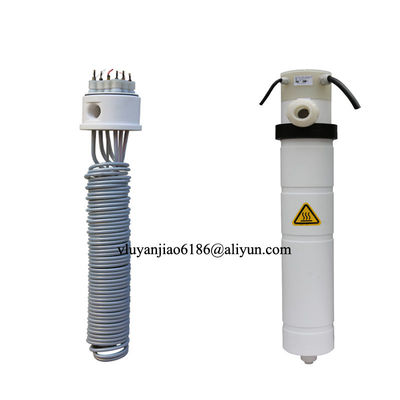

Large Image : Semiconductor Process Fluid Heating Heater , PTFE Frame Inline Chemical Heaters

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	Heaters For Semiconductors 19

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

Semiconductor Process Fluid Heating Heater , PTFE Frame Inline Chemical Heaters

Description

Name:	Performs Unmatched Semiconductor Process Fluid Heating Inline Chemical Semiconductor Heater	Type Of Temperature Control:	PT100 Or J Type
Application:	Semiconductor, Solar, MEMs, And Other Technological Industries	Frame Material:	PTFE
Inside Material:	PFA	Cable Length:	2 Meters/3meters/others
Highlight:	Semiconductor Process Heater , Inline Chemical Fluid Heating Heater , PTFE Frame Chemical Heaters

Performs Unmatched Semiconductor Process Fluid Heating Inline Chemical Semiconductor Heater

Faster heatup: Single heater chamber sizes up to 18kW.

Rapid installation: Customized plumbing connections

Long heater life for reduced cost of ownership (COO):

Patented heater gas purge system continuously removes any chemical permeation and ensures long element life

Long heater life and clean operating: Patented heater gas purge system continuously removes chemical permeation and ensures exceptionally long element life. This system also protects against any potential ionic contamination of the chemistry.

Rugged construction: Thick walled chamber provides long service life in the harshest high temperature applications.

Exceptionally clean performance: Thick fluoropolymersheath minimizes permeation. Element purge monitoring minimizes ionic contamination potential. Cleanroom assembly and testing ensures the highest manufacturing standards

Outstanding chemical compatibility: All fluoropolymerwetted parts compatible with virtually any chemistry

Excellent temperature stability: Low watt density design enables accurate control of process temperature.

Applications Include:

SC1: ammonium hydroxide (NH4OH), and hydrogen peroxide (H2O2)
SC2: hydrochlorice acid (HCl) and hydrogen peroxide Buffered oxide etch (BOE) process: hydrofluoric acid (HF) and ammonim fluoride (NH4F)

Nitride etch/strip: phosphoric acid (H3PO4)Various acids such as:

Hydrochloric (HCl)

Hydrofluoric (HF)

Acetic (C2H4O2)

Nitric (HNO3)

Sulfuric (H2SO4)

Sulfuric acid and hydrogen peroxide

Sulfuric acid and ozone (O3)

Hydrofluoric acid and glycol (C2H6O2)

Potassium hydroxide (KOH)

Sodium hydroxide (NaOH)

Electroless nickel Electroless copper Electroless gold Deionized water

Some solvents (consult factory)

Service:

• Inline chemical heater with all fluoropolymer wetted

surfaces for virtually any wet chemistry application

Maximum Working Pressure:

• 100 PSIG (7 Bar) at 25oC

• 43 PSIG (. Bar) at 180oC

Heater Sizes: 1,000 watts up to 18,000 watts

Heater Voltages Available:

200 to 600 volts, single or three phase (12kW and

larger requires three phase).

Watt Density: 10 watts per square inch (1.5w/cm2)

Fluid Connections Available:

• 1⁄4” (6mm) to 1” (25mm) flared
• 1⁄2” (12mm) to 1” (25mm) Super 300 Type Pillar®•

Other connections available, consult factory

Third Party Certificatons: CE, UL, Semi S2 and S3

Element Purge:
• Small amount of clean dry air (CDA) or N2 gas flows

between the metal grounded element and the PTFE sheath

Applications

Semiconductor Wet Processes

Sterilization/Cleaning

Solar/Photovoltaic Wafer Cleaning

Other Applications(Other products)

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition

Products(2)

MOTS TRIPLE – VERTICAL
MOTS Triple Vertical: L-shaped, vertical metal over the side heater. 3,000-36,000 watts, 208-600 volts.

Semiconductor Process Fluid Heating Heater , PTFE Frame Inline Chemical Heaters 0

9HS SERIES – TUBULAR
9HS PTFE Heater: Over the side, 9 element, tubular heater. Three phase. 9000-31500 watts, 208-600 volts.

Semiconductor Process Fluid Heating Heater , PTFE Frame Inline Chemical Heaters 1

V SERIES – VARIPOWER
Metal or Fluoropolymer (PTFE) sheath heater. Single phase. Heats up to 212°F (100°C). 100-1000 watts, 120-240 volts.

Semiconductor Process Fluid Heating Heater , PTFE Frame Inline Chemical Heaters 2

MOTS SINGLE
MOTS Single Heater – Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.

Semiconductor Process Fluid Heating Heater , PTFE Frame Inline Chemical Heaters 3

MOTS SINGLE – DAS, PHOSPHATE
MOTS Single DAS Phosphate Heater – Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.

Semiconductor Process Fluid Heating Heater , PTFE Frame Inline Chemical Heaters 4

MOTS TRIPLE – L SHAPED, DERATED
Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.

Semiconductor Process Fluid Heating Heater , PTFE Frame Inline Chemical Heaters 5

Ultra-High-Purity Heating
Designed with Ultra-High-Purity processes in mind, Surplus delivers clean-room assembled, reliable heating and power solutions to fit specific needs.

Products For Ultra-High-Purity Heating

Inline Heater

PFA Inline Heater

Inline Chemical Heater
