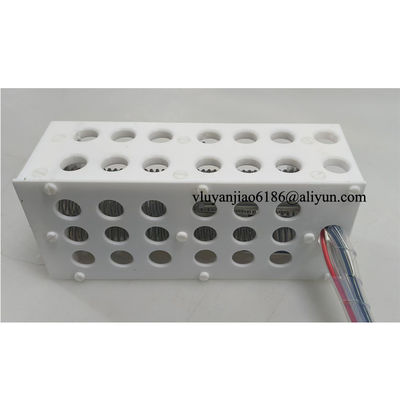

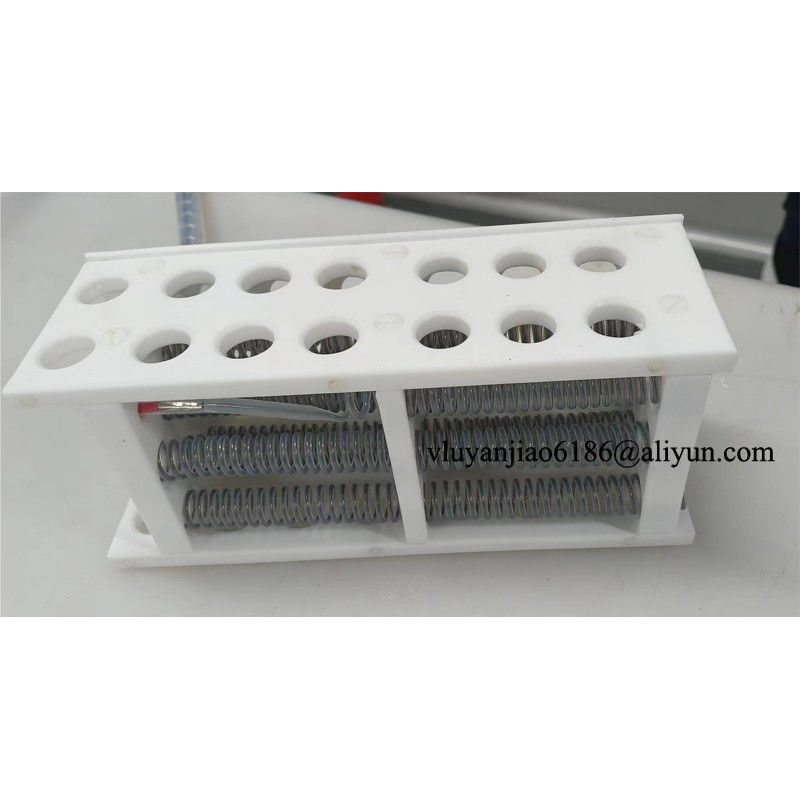

230V 1P 1.5KW 190x190x40mm PTFE Immersion Semiconductor Heater

Voltage: 230V 1Phase

Power: 1.5KW

Dimension: 190*190*40MM, can do as your requirements

Material: PTFE+PFA heating wire

Usage: Put on the bottom of the chemical tank to heating up the tank solutions.

Industries

Semiconductor

Ultra-High-Purity Solutions

Surplus designs and manufactures thermal solutions and power supplies to meet the most stringent cleanroom,

ultra-high-purity (UHP) processes, and customer requirements of the Semiconductor and Wafer Processing industries.

Applications

Wet-Deposition

Flammable Solvent Heating

Chemical Heating

RO/DI Water Heating

Ultra-High-Purity Heating

PRODUCT OVERVIEW

Heaters For Semiconductor are great for heating fluid baths to a constant temperature. These heaters are ideal for use in the semiconductor, pharmaceutical, and biomedical industries. First of all, these immersion heaters provide clean heat evenly and efficiently. Furthermore, they’re compact and highly customizable. They provide a maximum process work area, and consume a minimal amount of chemicals. Moreover, wetted surfaces feature all-PFA materials, and may be used in tanks made of PVDF, PFA, or quartz. Please contact us with inquiries about other tank materials.

BOTH AGGRESSIVE CHEMISTRIES AND DEIONIZED WATER

These rugged and durable heaters come in grid, frame, and fence models, with outputs of 1.0 to 30.0 kW. Most importantly, they feature a low watt density (≤ 4 watts/in²) for a fast heating response. Furthermore, these heaters integrate easily into most process tanks. Provide Surplus with your specifications and tank size, and let us build an immersion heater for you.

SAFETY FEATURES

At the heart of these immersion heaters is the patented PreciseHeater heating coil, with a efficiency of > 99% and a MTBF of more than 10 years. Moreover, a microprocessor-based temperature controller regulates the heater output. Additionally, optional safety features include both platinum and embedded ground wires, a Type-J process thermocouple, and RTD over-temperature and process thermocouples.

KEY SPECIFICATIONS

Maximum heating temperature of these immersion heaters is 200º C (392º F), with a temperature accuracy of ± 0.1º C (contingent on customer’s facilitation). Grid heaters are typically ¾” high, and frame heaters 1 ½” high. Outputs range from 1.0 to 30.0 kW (dependent on customer voltage), and from 120 VAC to 480 VAC, 1 or 3-ph (dependent on wattage).

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.



Electrochemical Deposition Products(2)
MOTS SINGLE – BOTTOM, DERATED Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts. .	MOTS TRIPLE – L SHAPED L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.	6HS SERIES – TUBULAR Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.
MOTS TRIPLE – DEEP TANK Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.	MOTS TRIPLE – DEEP TANK Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.	MOTS TRIPLE Metal over the side heater. Three phase. 3000-36000 watts. 208-600 volts.



Products For General Metal Finishing
MOTS SINGLE MOTS Single Heater – Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.	MOTS SINGLE – DAS, PHOSPHATE MOTS Single DAS Phosphate Heater – Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.	MOTS TRIPLE – L SHAPED, DERATED Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.
MOTS SINGLE – BOTTOM, DERATED Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts. .	MOTS TRIPLE – L SHAPED L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.	6HS SERIES – TUBULAR Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.
9HX SERIES Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.	6HX SERIES Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.	3HXOL SERIES Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.
