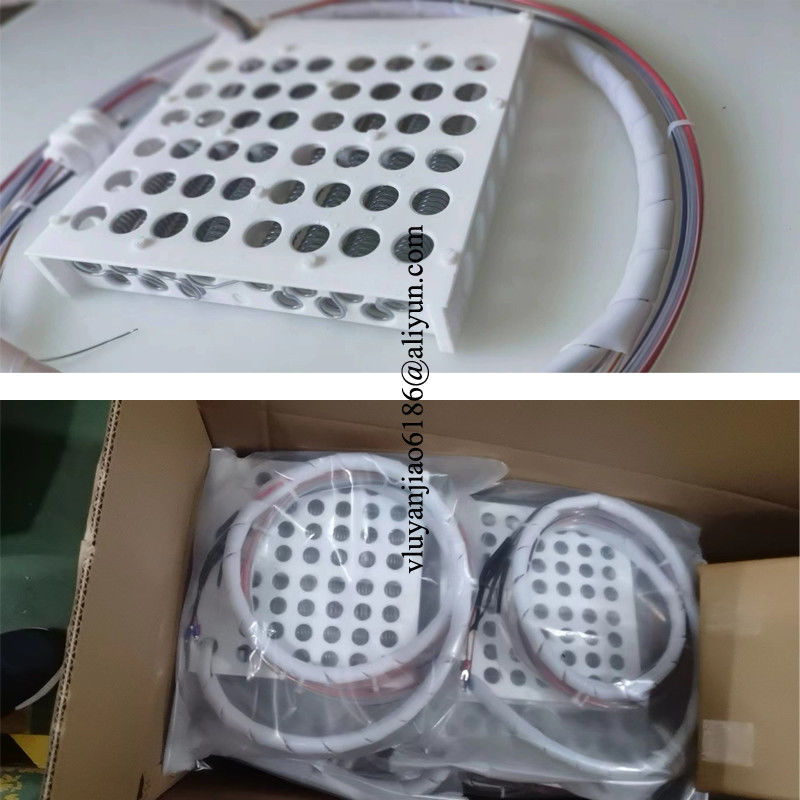

230V 1P 1.5KW 200x200x45mm Simplified Maintenance PTFE Immersion Semiconductor Heater

Voltage: 208V 1Phase

Power: 3KW

Dimension: 350*250*40MM, can do as your requirements

Material: PTFE+PFA heating wire

Usage: Put on the bottom of the chemical tank to heating up the tank solutions.

Industries

Semiconductor

Ultra-High-Purity Solutions

Surplus designs and manufactures thermal solutions and power supplies to meet the most stringent cleanroom,

ultra-high-purity (UHP) processes, and customer requirements of the Semiconductor and Wafer Processing industries.

Applications

Wet-Deposition

Flammable Solvent Heating

Chemical Heating

RO/DI Water Heating

Ultra-High-Purity Heating

PRODUCT OVERVIEW

Heaters For Semiconductor are great for heating fluid baths to a constant temperature. These heaters are ideal for use in the semiconductor, pharmaceutical, and biomedical industries. First of all, these immersion heaters provide clean heat evenly and efficiently. Furthermore, they’re compact and highly customizable. They provide a maximum process work area, and consume a minimal amount of chemicals. Moreover, wetted surfaces feature all-PFA materials, and may be used in tanks made of PVDF, PFA, or quartz. Please contact us with inquiries about other tank materials.

BOTH AGGRESSIVE CHEMISTRIES AND DEIONIZED WATER

These rugged and durable heaters come in grid, frame, and fence models, with outputs of 1.0 to 30.0 kW. Most importantly, they feature a low watt density (≤ 4 watts/in²) for a fast heating response. Furthermore, these heaters integrate easily into most process tanks. Provide Surplus with your specifications and tank size, and let us build an immersion heater for you.

SAFETY FEATURES

At the heart of these immersion heaters is the patented PreciseHeater heating coil, with a efficiency of > 99% and a MTBF of more than 10 years. Moreover, a microprocessor-based temperature controller regulates the heater output. Additionally, optional safety features include both platinum and embedded ground wires, a Type-J process thermocouple, and RTD over-temperature and process thermocouples.

KEY SPECIFICATIONS

Maximum heating temperature of these immersion heaters is 200º C (392º F), with a temperature accuracy of ± 0.1º C (contingent on customer’s facilitation). Grid heaters are typically ¾” high, and frame heaters 1 ½” high. Outputs range from 1.0 to 30.0 kW (dependent on customer voltage), and from 120 VAC to 480 VAC, 1 or 3-ph (dependent on wattage).



We can serve you in the teflon lined welded tank, small teflon lined vessel, mixer PTFE lined vessel and more PTFE teflon lined tank below.
Material used : PTFE, PFA, FEP, ECTFE, PVDF etched or glass backing.



Can store acid or alkali
high temperature resistance
Can custom sizes or even install PFA outlet and PFA inlet







Point Of Use Heating
Point of Use (POU) Heating refers to the energy-efficient heating method of placing a small heater near the processing bath to reduce heat-up wait times.



Products For Point Of Use Heating Applications Semiconductor Wafer Cleaning Etching Inline Chemical Heating Point of Use Heating (POU)
High-Purity PFA Inline Chemical Heater	PTFE Inline Heater	Inline Chemical Heater



Electro-Polishing
Electro-polishing (Electropolishing) involves using electricity and chemical reactions to remove ions from the surface to deburr and reduce the surface roughness for a smooth, level, and clean surface, free of irregularities. Surplus power supplies deliver full power supply output performance, high efficiency, high-speed, DC output, connectivity, reliability, and ETL certification.



Products For Electro-Polishing
9HX SERIES Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.	6HX SERIES Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.	3HXOL SERIES Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.
