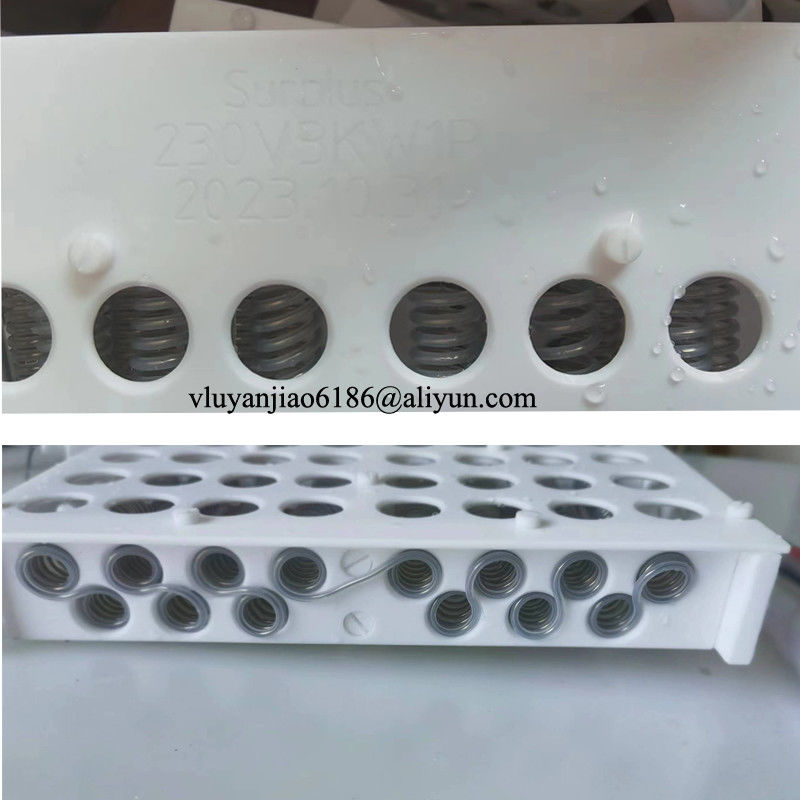

208V 1P 3KW 350x250x40mm Optimized Efficiency PTFE Submersible Semiconductor Heater

Voltage: 208V 1Phase

Power: 3KW

Dimension: 350*250*40MM, can do as your requirements

Material: PTFE+PFA heating wire

Usage: Put on the bottom of the chemical tank to heating up the tank solutions.

Industries

Semiconductor

Ultra-High-Purity Solutions

Surplus designs and manufactures thermal solutions and power supplies to meet the most stringent cleanroom,

ultra-high-purity (UHP) processes, and customer requirements of the Semiconductor and Wafer Processing industries.

Applications

Wet-Deposition

Flammable Solvent Heating

Chemical Heating

RO/DI Water Heating

Ultra-High-Purity Heating

PRODUCT OVERVIEW

Heaters For Semiconductor are great for heating fluid baths to a constant temperature. These heaters are ideal for use in the semiconductor, pharmaceutical, and biomedical industries. First of all, these immersion heaters provide clean heat evenly and efficiently. Furthermore, they’re compact and highly customizable. They provide a maximum process work area, and consume a minimal amount of chemicals. Moreover, wetted surfaces feature all-PFA materials, and may be used in tanks made of PVDF, PFA, or quartz. Please contact us with inquiries about other tank materials.

BOTH AGGRESSIVE CHEMISTRIES AND DEIONIZED WATER

These rugged and durable heaters come in grid, frame, and fence models, with outputs of 1.0 to 30.0 kW. Most importantly, they feature a low watt density (≤ 4 watts/in²) for a fast heating response. Furthermore, these heaters integrate easily into most process tanks. Provide Surplus with your specifications and tank size, and let us build an immersion heater for you.

SAFETY FEATURES

At the heart of these immersion heaters is the patented PreciseHeater heating coil, with a efficiency of > 99% and a MTBF of more than 10 years. Moreover, a microprocessor-based temperature controller regulates the heater output. Additionally, optional safety features include both platinum and embedded ground wires, a Type-J process thermocouple, and RTD over-temperature and process thermocouples.

KEY SPECIFICATIONS

Maximum heating temperature of these immersion heaters is 200º C (392º F), with a temperature accuracy of ± 0.1º C (contingent on customer’s facilitation). Grid heaters are typically ¾” high, and frame heaters 1 ½” high. Outputs range from 1.0 to 30.0 kW (dependent on customer voltage), and from 120 VAC to 480 VAC, 1 or 3-ph (dependent on wattage).



We can serve you in the teflon lined welded tank, small teflon lined vessel, mixer PTFE lined vessel and more PTFE teflon lined tank below.
Material used : PTFE, PFA, FEP, ECTFE, PVDF etched or glass backing.



Can store acid or alkali
high temperature resistance
Can custom sizes or even install PFA outlet and PFA inlet





RO/DI Water Heating
Deionized water (DI Water) has become a crucial part of many industrial process applications' impurity removal process. Cleaning semiconductors or other ultra-clean end-use devices requires the highest level of purity to reduce product failure.



Products For RO/DI Water Heating   Applications Semiconductor Flat Panel Display
Heating Systems for Purified, DI Water	PTFE Inline Chemical Heater





Acid Heating And Corrosive Chemical Heating

Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, Process Technology fluoropolymer (PTFE) heaters and exchangers are engineered to perform.



Acid Heating And Corrosive Chemical Heating(1)
3HX Series	HXT SERIES – SCREWPLUG	9HX SERIES
6HX SERIES	3HXOL SERIES	HXSL SERIES
