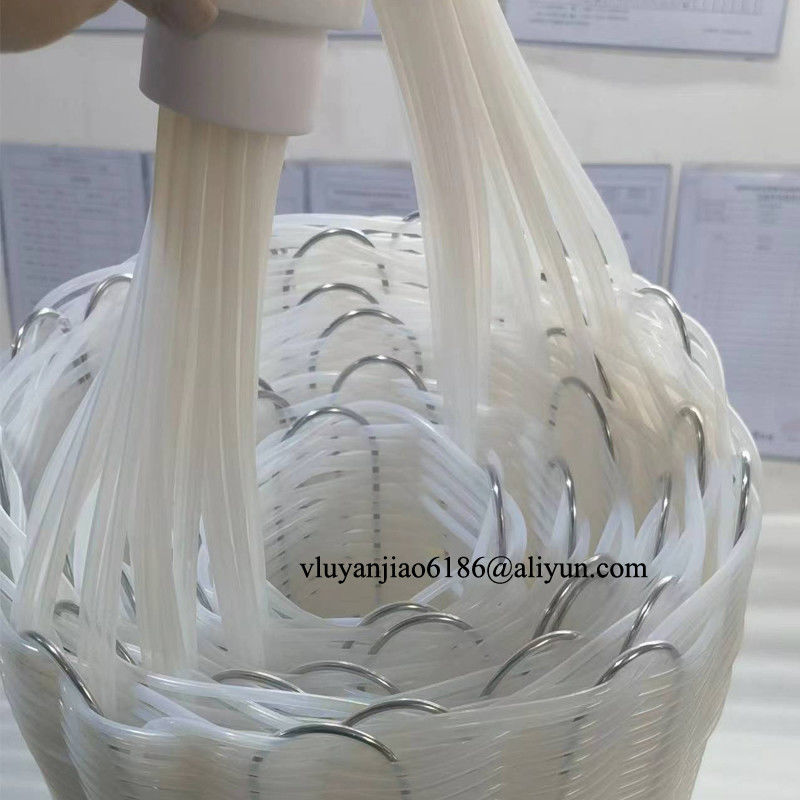

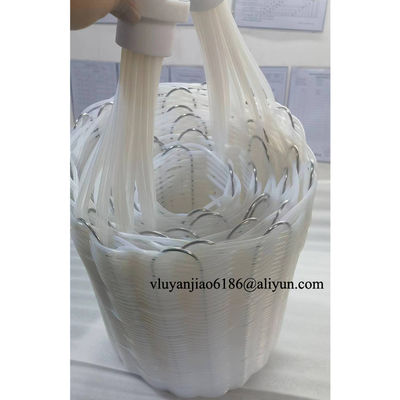

PTFE Heat Exchanger For Chemical,Pickling,Medicine,Anodizing and Other Industries
PTFE heat exchangers have been widely used in corrosion-resistant industries,
such as chemical, pickling, electric ferry, medicine, anodizing and other industries.
PTFE heat exchangers have super corrosion resistance and anti-aging performance.
Due to its excellent temperature resistance, it is suitable for both steam heating and hot water heating.
PTFE heat exchanger is a new corrosion-resistant heat exchanger developed in the last ten years,
the main structural forms are shell-and-tube and immersive,
it has unparalleled chemical stability and cold and heat stability (-250~260 °C)
PTFE heat exchangers mainly have excellent corrosion resistance. Because Teflon is a chemically inert material,
it can work in almost all media except elemental fluorine at high temperatures,
molten alkali metals, chlorine trifluoride, uranium hexafluoride and perfluorinated kerosene.
Such as concentrated hydrochloric acid, hydrofluoric acid, sulfuric acid, nitric acid, phosphoric acid,
oxalic acid, caustic soda, sodium hypochlorite, benzene, xylene, aqua regia, chlorine, toluene,
naphthalene and various organic solvents and so on.
Note: The steam pressure must be less than 4 kg and the steam pipeline must be equipped with a filter valve.
PRODUCT DESCRIPTION
Excellent chemical compatibility and rugged design for your heating or cooling application.
FEATURES
All wetted parts of fluoropolymer (FEP, PFA, or PTFE) construction.
Heavy duty CPVC mounting bracket and 1/8-inch thick perforated guard helps protect the coil from damage.
Heavy wall tubing improves circulation and minimizes pressure drop.
SPECIFICATIONS
Standard coils are FEP and rated up to 60 PSI steam service. PFA coils are available for steam service up to 140 PSI.
5.5 square foot to 120 square foot of exchange area standard.
20 PSI minimum steam pressure required for operation.
Tubing sizes: 1/2 inch (12.5mm) diameter for larger coils and 1/4 inch (6.5mm) diameter for smaller coils.
Inlet and Outlet Sizing:3/4'', 1'', 1-1/2'', 2'' Available
OPTIONS AVAILABLE (CONSULT FACTORY)
Custom configuration including bottom style exchangers.
Anti-floatation brackets.
Special manifold configurations.
Dual coils for both heating and cooling.
NOTE: Vacuum breakers recommended for fluoropolymer heat exchanger steam heating installations.
Custom exchange area and size are available
Industries
- Semiconductor Fabrication
- Solar Cell Manufacturing
- Flat-Panel Display, LEDs & Electronics
- Chemicals Manufacturing
- Industrial Manufacturing
