Custom Robust Design PTFE Heat Exchanger With Heavy Duty CPVC Mounting Bracket

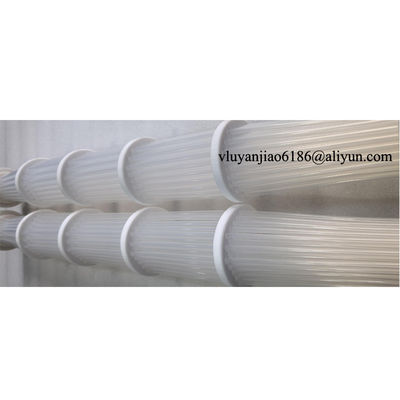

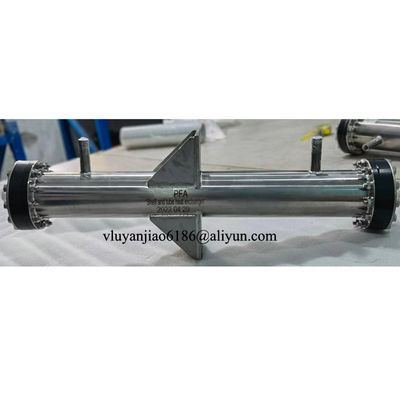

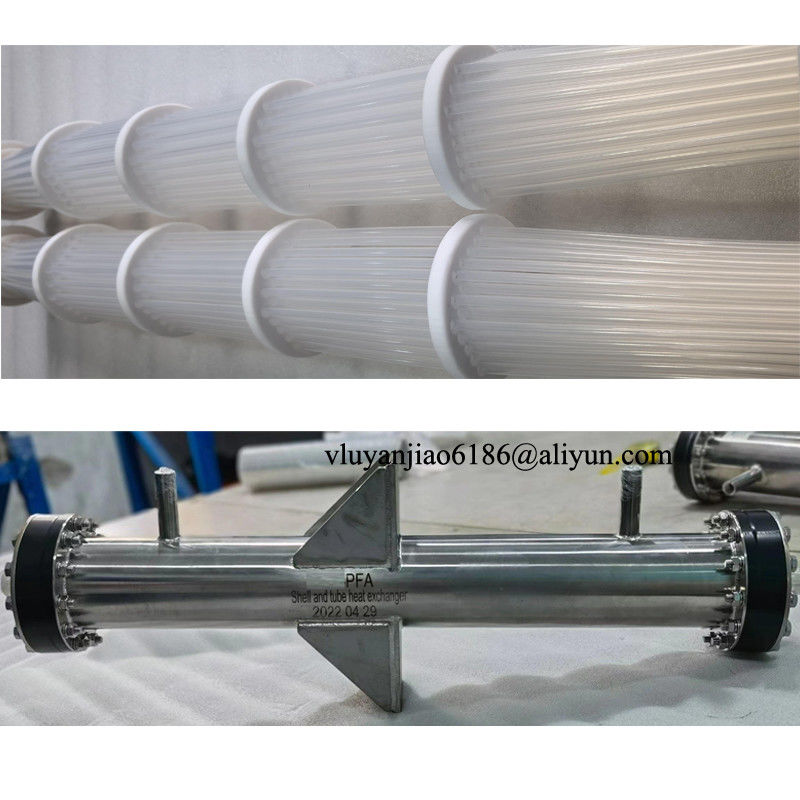

Large Image : Custom Robust Design PTFE Heat Exchanger With Heavy Duty CPVC Mounting Bracket

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001,CE
Model Number:	PTFE Heat Exchanger 04

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	T/T,
Supply Ability:	50 PC/Month

Contact Now

Custom Robust Design PTFE Heat Exchanger With Heavy Duty CPVC Mounting Bracket

Description

Name:	Robust Design PTFE Heat Exchanger With Heavy-Duty CPVC Mounting Bracket And 1/4-Inch Construction For Smaller Coils	Frame Material:	PTFE,PP,PVC,PVDF
Tube Material:	PFA,PTFE,FEP	Connections:	1/2" FNPT Or Others
Pressure:	30 PSI	Size:	Can Designed As Requirements
Highlight:	Robust Design PTFE Heat Exchanger , Custom PTFE Heat Exchanger

Robust Design PTFE Heat Exchanger with Heavy-Duty CPVC Mounting Bracket and 1/4-Inch Construction for Smaller Coils

Excellent chemical compatibility and rugged design for your heating or cooling application.

All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction.

Eliminates stray currents.

PFA coils are available for steam service up to 60 PSI.

10 PSI minimum steam pressure required for operation.

Robust Design

The Coil is designed to eliminate stray currents in tanks and offers excellent chemical compatibility with a rugged design ideal for heating or cooling applications.

All wetted parts are constructed from durable fluoropolymer materials (FEP, PFA, or PTFE), ensuring superior performance and longevity.

The heavy-duty CPVC mounting bracket provides robust support, while standard FEP coils are rated for up to 30 PSI steam service, and PFA coils can handle up to 60 PSI steam pressure.

The coil’s heavy wall tubing improves circulation, reduces pressure drop, and a 1/8-inch perforated guard offers protection from damage.

Integral inlet/outlet connections reduce potential leaks, ensuring reliable operation.

Vacuum breakers are recommended for fluoropolymer heat coil steam heating installations.

Features & Values

All wetted parts of fluoropolymer(FEP,PFA or PTFE) construction with a heavy duty CPVC mounting bracket.

Heavy wall tubing improves circulation and minimizes pressure drop. Larger coils constructed of 1/2 inch(13mm) tubing, smaller coils have 1/4 inch(7mm) tubing.

Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation.

Eliminates stray currents in the tank.

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Others Applications

Precious Metal Deposition
Engineered to meet the most stringent requirements, accurate and reliable Heaters in Precious Metals' Deposition reduce materials waste. Low ripple Power Supplies provide clean and smooth direct current (DC), precision results while also saving on materials.

Products For General Metal Finishing

MOTS SINGLE
MOTS Single Heater – Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.

Custom Robust Design PTFE Heat Exchanger With Heavy Duty CPVC Mounting Bracket 0

MOTS SINGLE – DAS, PHOSPHATE
MOTS Single DAS Phosphate Heater – Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.

Custom Robust Design PTFE Heat Exchanger With Heavy Duty CPVC Mounting Bracket 1

MOTS TRIPLE – L SHAPED, DERATED
Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.

Custom Robust Design PTFE Heat Exchanger With Heavy Duty CPVC Mounting Bracket 2

MOTS SINGLE – BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

. Custom Robust Design PTFE Heat Exchanger With Heavy Duty CPVC Mounting Bracket 3

MOTS TRIPLE – L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

Custom Robust Design PTFE Heat Exchanger With Heavy Duty CPVC Mounting Bracket 4

6HS SERIES – TUBULAR
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

Custom Robust Design PTFE Heat Exchanger With Heavy Duty CPVC Mounting Bracket 5

9HX SERIES
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.
Custom Robust Design PTFE Heat Exchanger With Heavy Duty CPVC Mounting Bracket 6

6HX SERIES
Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.
Custom Robust Design PTFE Heat Exchanger With Heavy Duty CPVC Mounting Bracket 7

3HXOL SERIES

Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.

Custom Robust Design PTFE Heat Exchanger With Heavy Duty CPVC Mounting Bracket 8

Applications

Fluid Heating
Filtration
Sterilization & Cleaning

Fluid Heating

Ultra-Pure Fluid Heaters

Overview
We offers a variety of patented and uniquely-engineered ultra-pure precision heaters for heating various chemical and plating solutions, gases, solvents and deionized water. Our award-winning engineers design and manufacture components from PFA, applied to patented PFA heating technology, that achieves a small mass with a large surface area, providing a faster heater response and a longer life at elevated temperatures. Our extremely flexible high-output heating coils are capable of being fashioned into an almost endless variety of shapes and sizes.

The resulting heaters outlast competing products of lesser capability and are designed into a wide range of standard and customized products.
