3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals

Certification
China Surplus Industrial Technology Limited certification
China Surplus Industrial Technology Limited certification
I'm Online Chat Now

3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals

3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals
3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals 3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals

Large Image :  3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001
Model Number: PFA Immersion Tank Heater 20
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Contact Us
Packaging Details: Wooden Case or Carton Box
Delivery Time: 10-15 working days
Payment Terms: TT, Paypal, Western Union
Supply Ability: 50 PC/Month

3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals

Description
Name: 3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals Supply Voltage (V/Phase):: 220V-480V
Power(KW): 3kw-18kw Type Of Temperature Control: PT100 Or J Type
Application: Semiconductor, Solar, MEMs, And Other Technological Industries Frame Material: PTFE
Inside Material: PFA Cable Length: 2 Meters/3meters/others
Highlight:

1 Phase PFA Immersion Tank Heaters

,

3.6KW Tank Immersion Heaters

,

Chemicals PFA Immersion Tank Heaters

3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals

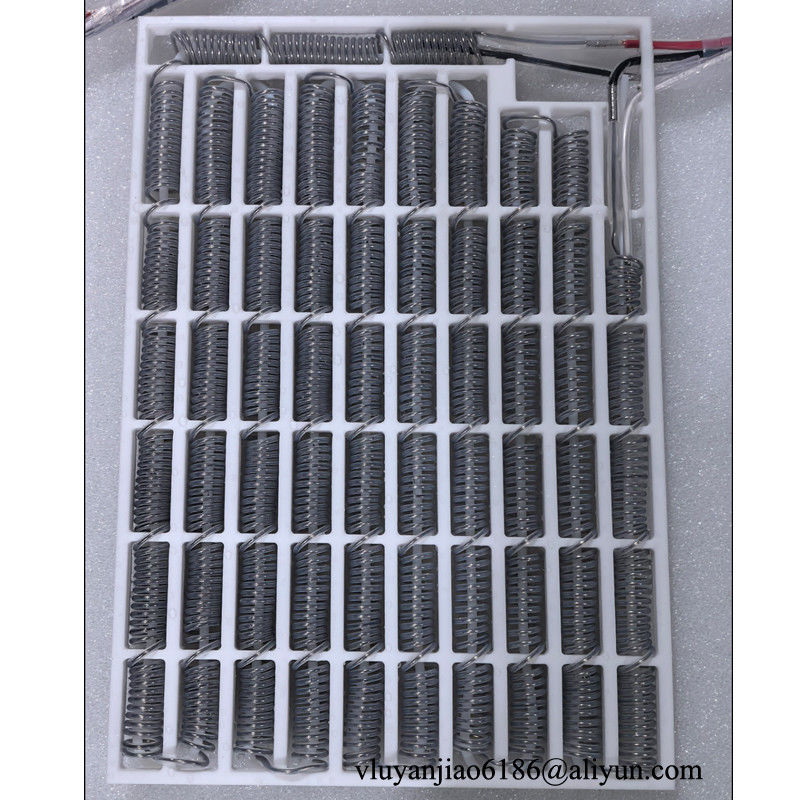

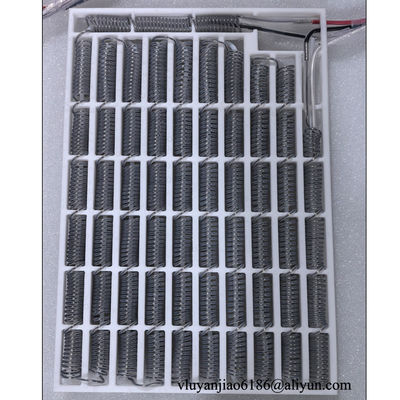

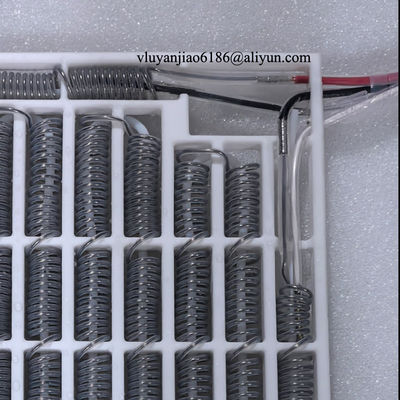

PFA immersion tank heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance. PFA immersion tank heater provide high-efficiency heating with superior temperature control and maximum power output in a compact footprint. The heaters are available in various sizes that easily fit new and existing systems common to semiconductor, solar, MEMs, and other technological industries.



Features & Benefits

  • Ultrapure PTFE/PFA wetted surfaces
  • Reliable heating of harsh chemicals
  • Maximum power in compact footprint
  • Maximum 200°C heating capability
  • Fast temperature response and efficiency
  • Each configuration capable of various voltage-to-wattage combinations
  • Integrate easily into most PVDF, PFA, and quartz wet process tanks
  • Sizes for many tank dimensions
  • Compact height of 1-5/8 inch
  • Safety features include hi-limit sensor and encapsulated ground wire
  • No N2 purge required

Specifications


Heater Element Heating Coil
Wetted Surfaces PFA/PTFE
Wattages 1.0 – 20 kW
Voltages 120 – 480 VAC
1 or 3 phase
Sizes (LxW) 7x5 to 19x14 inch
Height 1-5/8 inch
Temperature 200°C (392°F)
Hi-Limit Sensor Type-J thermocouple
Ground Wire Encapsulated
Lead Wire 15-ft







Dimensions

Model
kW
Height
Benefits
Grid
1-6 kW*
3/4 in
Low Profile Design
Frame
1-30 kW
1-1/2 in
Low Profile Design for Higher kW's
Fence
1-10 kW
Variable
Heater on side of tank leaving center of tank open





Applications of PFA Immersion Tank Heaters:

  • Semiconductor Industry: Heating DI water and other chemicals used in semiconductor manufacturing.
  • Plating Industry: Heating corrosive solutions used in plating processes.
  • Pharmaceutical and Biomedical Industries: Heating and maintaining constant temperatures for various fluids.
  • Research and Development: Heating liquids for lab experiments and research applications.
  • Process Heating: Heating fluids in various industrial processes where chemical resistance is required





Other Applications



Ultra-High-Purity Heating
Designed with Ultra-High-Purity processes in mind, Surplus delivers clean-room assembled, reliable heating and power solutions to fit specific needs.



Products For Ultra-High-Purity Heating

Inline Heater

3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals 0

PFA Inline Heater



3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals 1

Inline Chemical Heater

3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals 2





Anodizing
Anodizing is an electrochemical process of converting a metal surface into an oxide layer. Mainly aluminum is used for anodizing, although other nonferrous metals, such as titanium and magnesium, can also be anodized. The metal part is connected as the anode and immersed into an acid electrolyte bath, where an electric current is applied to grow the oxide layer from the piece. The resulting surface finish will provide functional properties as corrosion-resistance and durability, as well as decorative properties. Surplus heaters provide beautiful, precise finishes. Surplus power supplies deliver high current, high accuracy, and high energy efficiency to meet a modern anodizing process's requirements.



Products For Anodizing

MOTS SINGLE – BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

.3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals 3



MOTS TRIPLE – L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals 4



6HS SERIES – TUBULAR
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

3KW 208VAC 1 Phase PFA Immersion Tank Heaters For Heating Harsh Chemicals 5
