Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater

Large Image : Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PFA Frame Heater 020

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater

Description

Name:	Customizable PFA Frame Heater For Customer Requirements In Harsh Chemicals	Supply Voltage (V/Phase)::	230V,380V,480V Or Others
Type Of Temperature Control:	PT100 Or J Type	Application:	Semiconductor, Solar, MEMs, And Other Technological Industries
Frame Material:	PTFE	Inside Material:	PFA
Cable Length:	2 Meters/3meters/others
Highlight:	Customizable PFA Frame Heater , PFA Frame Immersion Tank Heater , Industrial Chemical Immersion Heater

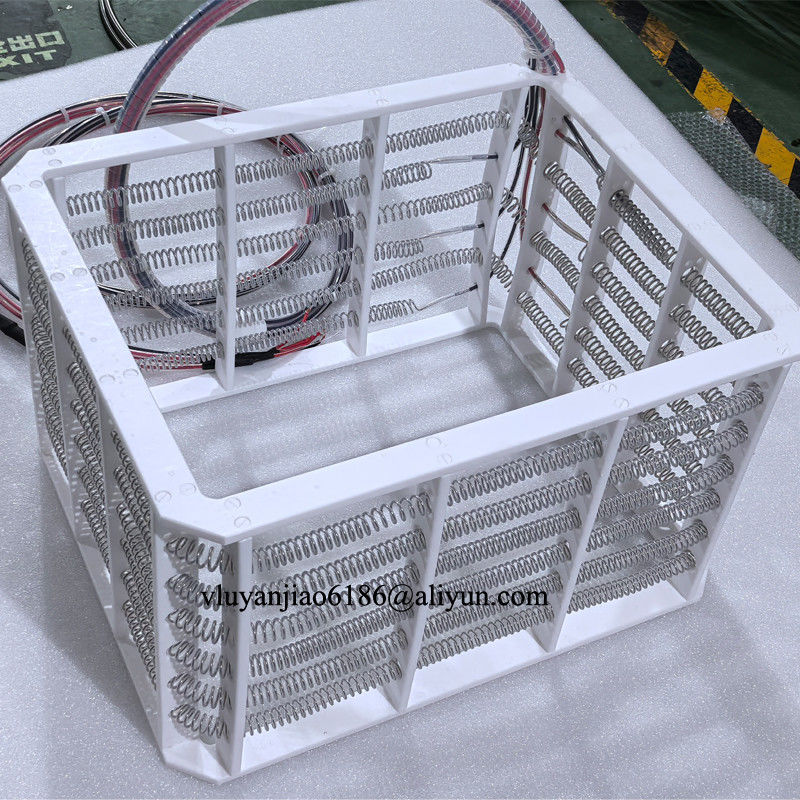

Customizable PFA Frame Heater For Customer Requirements In Harsh Chemicals

PFA Frame heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance. PFA immersion tank heater provide high-efficiency heating with superior temperature control and maximum power output in a compact footprint. The heaters are available in various sizes that easily fit new and existing systems common to semiconductor, solar, MEMs, and other technological industries.

Features & Benefits

Ultrapure PTFE/PFA wetted surfaces
Reliable heating of harsh chemicals
Maximum power in compact footprint
Maximum 200°C heating capability
Fast temperature response and efficiency
Each configuration capable of various voltage-to-wattage combinations
Integrate easily into most PVDF, PFA, and quartz wet process tanks
Sizes for many tank dimensions
Compact height of 1-5/8 inch
Safety features include hi-limit sensor and encapsulated ground wire
No N2 purge required

Specifications

Heater Element	Heating Coil
Wetted Surfaces	PFA/PTFE
Wattages	1.0 – 20 kW
Voltages	120 – 480 VAC 1 or 3 phase
Sizes (LxW)	7x5 to 19x14 inch
Height	1-5/8 inch
Temperature	200°C (392°F)
Hi-Limit Sensor	Type-J thermocouple
Ground Wire	Encapsulated
Lead Wire	15-ft

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Others Applications

Precious Metal Deposition
Engineered to meet the most stringent requirements, accurate and reliable Heaters in Precious Metals' Deposition reduce materials waste. Low ripple Power Supplies provide clean and smooth direct current (DC), precision results while also saving on materials.

Products For General Metal Finishing

MOTS SINGLE – BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

. Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater 0

MOTS TRIPLE – L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater 1

9HX SERIES
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.
Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater 2

6HX SERIES
Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.
Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater 3

Anodizing
Anodizing is an electrochemical process of converting a metal surface into an oxide layer. Mainly aluminum is used for anodizing, although other nonferrous metals, such as titanium and magnesium, can also be anodized. The metal part is connected as the anode and immersed into an acid electrolyte bath, where an electric current is applied to grow the oxide layer from the piece. The resulting surface finish will provide functional properties as corrosion-resistance and durability, as well as decorative properties. Surplus heaters provide beautiful, precise finishes. Surplus power supplies deliver high current, high accuracy, and high energy efficiency to meet a modern anodizing process's requirements.

Products For Anodizing

MOTS SINGLE – BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

. Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater 4

MOTS TRIPLE – L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater 5

6HS SERIES – TUBULAR
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater 6

MOTS TRIPLE – DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.

Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater 7

MOTS TRIPLE – DEEP TANK
Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). Single or three phase. 18000-54000 watts, 208-600 volts.
Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater 8

G (GRID) SERIES COIL
Efficient horizontal, vertical and L-shaped Immersion Coils for larger tanks. Available in steel, 316 stainless steel and titanium.

Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater 9

3HXOL SERIES

Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.

Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater 12

HXF SERIES
Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.
Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater 13

HX SERIES
Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . Single phase. 500-9000 watts, 120-600 volts.
Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater 14

3HX SERIES
Low watt density, 3 element heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 1000-6000 watts, 120-600 volts.

Customizable PFA Frame Heater Industrial Chemical Immersion Tank Heater 15
