240V 9x5in 3.0KW 1 Phase Electric PFA Frame Immersion Heater In Ultrapure Tanks

240V 9x5in 3.0KW 1 Phase Electric PFA Frame Immersion Heater In Ultrapure Tanks
240V 9x5in 3.0KW 1 Phase Electric PFA Frame Immersion Heater In Ultrapure Tanks

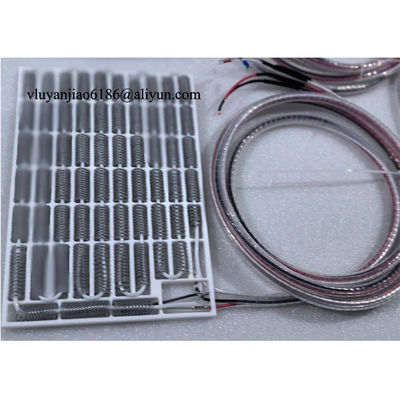

Large Image :  240V 9x5in 3.0KW 1 Phase Electric PFA Frame Immersion Heater In Ultrapure Tanks

Product Details:
Place of Origin: China
Brand Name: Surplus
Certification: ISO9001
Model Number: PFA Frame Heater 07
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Contact Us
Packaging Details: Wooden Case or Carton Box
Delivery Time: 10-15 working days
Payment Terms: TT, Paypal, Western Union
Supply Ability: 50 PC/Month
Contact Now

240V 9x5in 3.0KW 1 Phase Electric PFA Frame Immersion Heater In Ultrapure Tanks

Description
Name: 240V 9x5in 3.0KW 1 Phase Electric Immersion PFA Frame Heater In Ultrapure Tanks Supply Voltage (V/Phase):: 240V Or Others
Type Of Temperature Control: PT100 Or J Type Application: Semiconductor, Solar, MEMs, And Other Technological Industries
Frame Material: PTFE Inside Material: PFA
Cable Length: 2 Meters/3meters/others
Highlight:

Electric PFA Frame Immersion Heater

,

3.0KW 1 Phase Immersion Heater I

,

240V PFA Frame Immersion Heater

240V 9x5in 3.0KW 1 Phase Electric Immersion PFA Frame Heater In Ultrapure Tanks

Features & Benefits

  • Ultrapure PTFE/PFA wetted surfaces
  • Reliable heating of harsh chemicals
  • Maximum power in compact footprint
  • Maximum 200°C heating capability
  • Fast temperature response and efficiency
  • Each configuration capable of various voltage-to-wattage combinations
  • Integrate easily into most PVDF, PFA, and quartz wet process tanks
  • Sizes for many tank dimensions
  • Compact height of 1-5/8 inch
  • Safety features include hi-limit sensor and encapsulated ground wire
  • No N2 purge required

Optional Perforated Grids

  • Top grids separate heaters from wafer carriers and components to increase the available tank space
  • Bottom grids separate heaters from the tank floor
  • Available for all frame sizes
  • Adds 1/8 inch to height



Specifications


Heater Element Heating Coil
Wetted Surfaces PFA/PTFE
Wattages 1.0 – 20 kW
Voltages 120 – 480 VAC
1 or 3 phase
Sizes (LxW) 7x5 to 19x14 inch
Height 1-5/8 inch
Temperature 200°C (392°F)
Hi-Limit Sensor Type-J thermocouple
Ground Wire Encapsulated
Lead Wire 15-ft



Applications

Electro-Polishing
Electro-polishing (Electropolishing) involves using electricity and chemical reactions to remove ions from the surface to deburr and reduce the surface roughness for a smooth, level, and clean surface, free of irregularities. Surplus power supplies deliver full power supply output performance, high efficiency, high-speed, DC output, connectivity, reliability, and ETL certification.



Products For Electro-Polishing
9HX SERIES
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.
240V 9x5in 3.0KW 1 Phase Electric PFA Frame Immersion Heater In Ultrapure Tanks 0		 6HX SERIES
Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.
240V 9x5in 3.0KW 1 Phase Electric PFA Frame Immersion Heater In Ultrapure Tanks 1

3HXOL SERIES

Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.

240V 9x5in 3.0KW 1 Phase Electric PFA Frame Immersion Heater In Ultrapure Tanks 2






HXF SERIES
Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.
240V 9x5in 3.0KW 1 Phase Electric PFA Frame Immersion Heater In Ultrapure Tanks 3		 HX SERIES
Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . Single phase. 500-9000 watts, 120-600 volts.
240V 9x5in 3.0KW 1 Phase Electric PFA Frame Immersion Heater In Ultrapure Tanks 4

3HX SERIES
Low watt density, 3 element heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 1000-6000 watts, 120-600 volts.

240V 9x5in 3.0KW 1 Phase Electric PFA Frame Immersion Heater In Ultrapure Tanks 5
