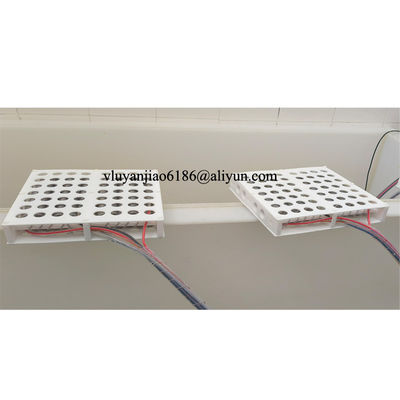

Industrial 230V 380V 480V PFA Frame Heater For Semiconductor And Solar Industry

Large Image : Industrial 230V 380V 480V PFA Frame Heater For Semiconductor And Solar Industry

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PFA Frame Heater 018

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

Industrial 230V 380V 480V PFA Frame Heater For Semiconductor And Solar Industry

Description

Name:	High-Performance PFA Frame Heater For Semiconductor And Solar Industries	Supply Voltage (V/Phase)::	230V,380V,480V Or Others
Type Of Temperature Control:	PT100 Or J Type	Application:	Semiconductor, Solar, MEMs, And Other Technological Industries
Frame Material:	PTFE	Inside Material:	PFA
Cable Length:	2 Meters/3meters/others
Highlight:	230V PFA Frame Heater , Semiconductor Industry PFA Frame Heater , 380V PFA Tank Heaters

High-Performance PFA Frame Heater for Semiconductor and Solar Industries

Features & Benefits

Ultrapure PTFE/PFA wetted surfaces
Reliable heating of harsh chemicals
Maximum power in compact footprint
Maximum 200°C heating capability
Fast temperature response and efficiency
Each configuration capable of various voltage-to-wattage combinations
Integrate easily into most PVDF, PFA, and quartz wet process tanks
Sizes for many tank dimensions
Compact height of 1-5/8 inch
Safety features include hi-limit sensor and encapsulated ground wire
No N2 purge required

Optional Perforated Grids

Top grids separate heaters from wafer carriers and components to increase the available tank space
Bottom grids separate heaters from the tank floor
Available for all frame sizes
Adds 1/8 inch to height

Specifications

Heater Element	Heating Coil
Wetted Surfaces	PFA/PTFE
Wattages	1.0 – 20 kW
Voltages	120 – 480 VAC 1 or 3 phase
Sizes (LxW)	7x5 to 19x14 inch
Height	1-5/8 inch
Temperature	200°C (392°F)
Hi-Limit Sensor	Type-J thermocouple
Ground Wire	Encapsulated
Lead Wire	15-ft

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Other Applications

Chemical Heating

Fluoropolymer (PTFE) heater and heating components are engineered with protection from corrosive chemicals while maintaining the highest quality and safety standards.

Chemical Heating(2)

HXT SERIES – SCREWPLUG
Low watt density, spiral screwplug heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 1000-6000 watts, 120-600 volts.

Industrial 230V 380V 480V PFA Frame Heater For Semiconductor And Solar Industry 0

HXOL SERIES
Low watt density, flexible riser, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 1000-6000 watts, 120-600 volts.

Industrial 230V 380V 480V PFA Frame Heater For Semiconductor And Solar Industry 1
