Semiconductor Over the Side PFA Immersion Heating Heater With Top And Bottom Grid

Large Image : Semiconductor Over the Side PFA Immersion Heating Heater With Top And Bottom Grid

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PFA Frame Heater 015

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now Chat Now

Semiconductor Over the Side PFA Immersion Heating Heater With Top And Bottom Grid

Description

Name:	Semiconductor Over The Side PFA Immersion Heating PFA Frame Heater With Top And Bottom Grid	Supply Voltage (V/Phase)::	230V,380V,480V Or Others
Type Of Temperature Control:	PT100 Or J Type	Application:	Semiconductor, Solar, MEMs, And Other Technological Industries
Frame Material:	PTFE	Inside Material:	PFA
Cable Length:	2 Meters/3meters/others
Highlight:	PFA Immersion Heating Heater , Semiconductor PFA Immersion Heater , PFA Over The Side Immersion Heater

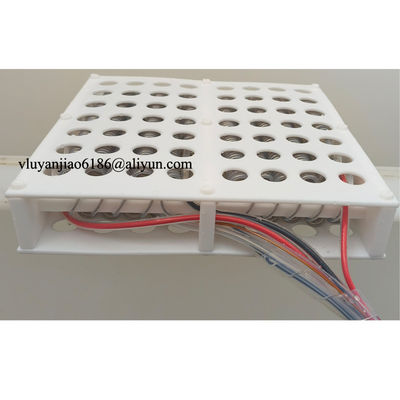

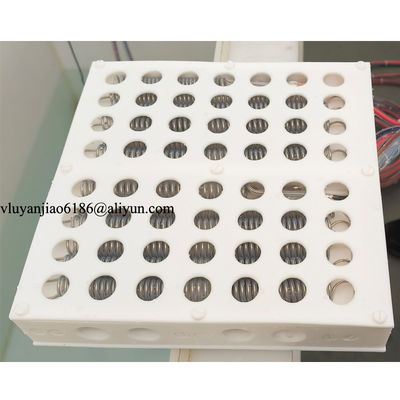

Semiconductor Over the Side PFA Immersion Heating PFA Frame Heater With Top And Bottom Grid

PFA Frame heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance. PFA immersion tank heater provide high-efficiency heating with superior temperature control and maximum power output in a compact footprint. The heaters are available in various sizes that easily fit new and existing systems common to semiconductor, solar, MEMs, and other technological industries.

Features & Benefits

Ultrapure PTFE/PFA wetted surfaces
Reliable heating of harsh chemicals
Maximum power in compact footprint
Maximum 200°C heating capability
Fast temperature response and efficiency
Each configuration capable of various voltage-to-wattage combinations
Integrate easily into most PVDF, PFA, and quartz wet process tanks
Sizes for many tank dimensions
Compact height of 1-5/8 inch
Safety features include hi-limit sensor and encapsulated ground wire
No N2 purge required

Specifications

Heater Element	Heating Coil
Wetted Surfaces	PFA/PTFE
Wattages	1.0 – 20 kW
Voltages	120 – 480 VAC 1 or 3 phase
Sizes (LxW)	7x5 to 19x14 inch
Height	1-5/8 inch
Temperature	200°C (392°F)
Hi-Limit Sensor	Type-J thermocouple
Ground Wire	Encapsulated
Lead Wire	15-ft

Other Applications

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition

Products(2)

MOTS TRIPLE – VERTICAL
MOTS Triple Vertical: L-shaped, vertical metal over the side heater. 3,000-36,000 watts, 208-600 volts.

Semiconductor Over the Side PFA Immersion Heating Heater With Top And Bottom Grid 0

9HS SERIES – TUBULAR
9HS PTFE Heater: Over the side, 9 element, tubular heater. Three phase. 9000-31500 watts, 208-600 volts.

Semiconductor Over the Side PFA Immersion Heating Heater With Top And Bottom Grid 1

V SERIES – VARIPOWER
Metal or Fluoropolymer (PTFE) sheath heater. Single phase. Heats up to 212°F (100°C). 100-1000 watts, 120-240 volts.

Semiconductor Over the Side PFA Immersion Heating Heater With Top And Bottom Grid 2

MOTS SINGLE
MOTS Single Heater – Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.

Semiconductor Over the Side PFA Immersion Heating Heater With Top And Bottom Grid 3

MOTS SINGLE – DAS, PHOSPHATE
MOTS Single DAS Phosphate Heater – Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.

Semiconductor Over the Side PFA Immersion Heating Heater With Top And Bottom Grid 4

MOTS TRIPLE – L SHAPED, DERATED
Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.

Semiconductor Over the Side PFA Immersion Heating Heater With Top And Bottom Grid 5
