Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks

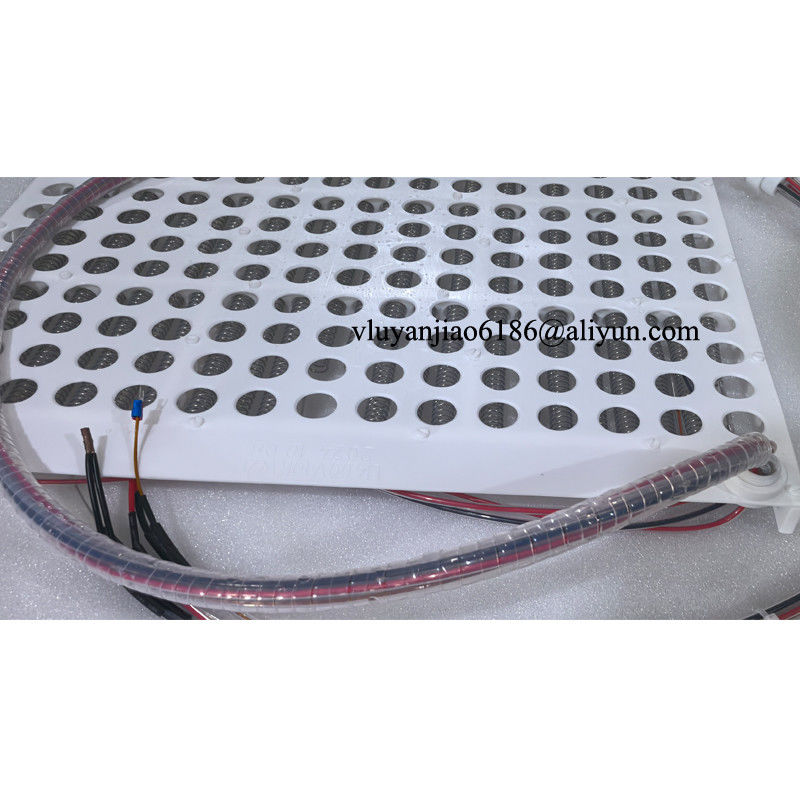

Large Image : Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PFA Frame Heater 06

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now Chat Now

Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks

Description

Name:	PFA Frame Heater For High-Efficiency Heating With Superior Temperature Control In Ultrapure Tanks	Supply Voltage (V/Phase)::	400V Or Others
Type Of Temperature Control:	PT100 Or J Type	Application:	Semiconductor, Solar, MEMs, And Other Technological Industries
Frame Material:	PTFE	Inside Material:	PFA
Cable Length:	2 Meters/3meters/others
Highlight:	Industrial PFA Frame Heater , Temperature Control PFA Frame Heater , Industrial Ultrapure Tank Heaters

PFA Frame Heater for High-Efficiency Heating with Superior Temperature Control in Ultrapure Tanks

PFA immersion tank heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance. PFA immersion tank heater provide high-efficiency heating with superior temperature control and maximum power output in a compact footprint. The heaters are available in various sizes that easily fit new and existing systems common to semiconductor, solar, MEMs, and other technological industries.

Features & Benefits

Ultrapure PTFE/PFA wetted surfaces
Reliable heating of harsh chemicals
Maximum power in compact footprint
Maximum 200°C heating capability
Fast temperature response and efficiency
Each configuration capable of various voltage-to-wattage combinations
Integrate easily into most PVDF, PFA, and quartz wet process tanks
Sizes for many tank dimensions
Compact height of 1-5/8 inch
Safety features include hi-limit sensor and encapsulated ground wire
No N2 purge required

Optional Perforated Grids

Top grids separate heaters from wafer carriers and components to increase the available tank space
Bottom grids separate heaters from the tank floor
Available for all frame sizes
Adds 1/8 inch to height

Specifications

Heater Element	Heating Coil
Wetted Surfaces	PFA/PTFE
Wattages	1.0 – 20 kW
Voltages	120 – 480 VAC 1 or 3 phase
Sizes (LxW)	7x5 to 19x14 inch
Height	1-5/8 inch
Temperature	200°C (392°F)
Hi-Limit Sensor	Type-J thermocouple
Ground Wire	Encapsulated
Lead Wire	15-ft

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Applications

General Metal Finishing
General Metal Finishing (GMF) heaters by Surplus provide general chemical treatment and finishing of metal substrates and add decorative or functional layers to the base metal substrate used on industrial and consumer products.

Products For General Metal Finishing

MOTS SINGLE
MOTS Single Heater – Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.

Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks 0

MOTS SINGLE – DAS, PHOSPHATE
MOTS Single DAS Phosphate Heater – Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.

Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks 1

MOTS TRIPLE – L SHAPED, DERATED
Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.

Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks 2

MOTS SINGLE – BOTTOM, DERATED
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts.

. Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks 3

MOTS TRIPLE – L SHAPED
L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.

Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks 4

6HS SERIES – TUBULAR
Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.

Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks 5

9HX SERIES
Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.
Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks 6

6HX SERIES
Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.
Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks 7

3HXOL SERIES

Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.

Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks 8

HXF SERIES
Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.
Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks 9

HX SERIES
Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . Single phase. 500-9000 watts, 120-600 volts.
Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks 10

QM SERIES HEATER ELEMENT
Metal Element (QM part 1). Single phase. Heats up to 212°F (100°C). 500-10000 watts, 120-600 volts.
Industrial PFA Frame Heater With Temperature Control In Ultrapure Tanks 11
