4.8KW 400V Immersion PFA Frame Heater For Heating Harsh Chemicals

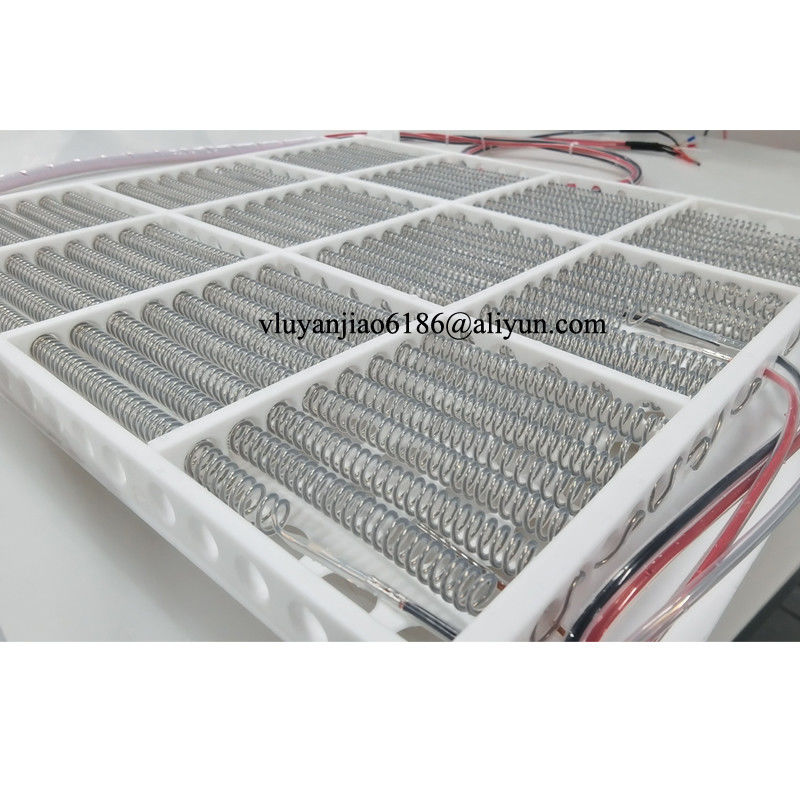

Large Image : 4.8KW 400V Immersion PFA Frame Heater For Heating Harsh Chemicals

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001
Model Number:	PFA Frame Heater 02

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Contact Us
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	50 PC/Month

Contact Now

4.8KW 400V Immersion PFA Frame Heater For Heating Harsh Chemicals

Description

Name:	4.8KW Process Tank Ultrapure PTFEPFA Wetted Surfaces Immersion PFA Frame Heater	Supply Voltage (V/Phase)::	400V Or Others
Power(KW):	4.8	Type Of Temperature Control:	PT100 Or J Type
Application:	Semiconductor, Solar, MEMs, And Other Technological Industries	Frame Material:	PTFE
Inside Material:	PFA	Cable Length:	2 Meters/3meters/others
Highlight:	400V Immersion PFA Frame Heater , 4.8KW Immersion PFA Frame Heater , Harsh Chemicals Immersion Heater

4.8KW Process Tank Ultrapure PTFE/PFA Wetted Surfaces Immersion PFA Frame Heater

Products for Semiconductor Manufacturing and Fabrication

Features & Benefits

Ultrapure PTFE/PFA wetted surfaces
Reliable heating of harsh chemicals
Maximum power in compact footprint
Maximum 200°C heating capability
Fast temperature response and efficiency
Each configuration capable of various voltage-to-wattage combinations
Integrate easily into most PVDF, PFA, and quartz wet process tanks
Sizes for many tank dimensions
Compact height of 1-5/8 inch
Safety features include hi-limit sensor and encapsulated ground wire
No N2 purge required

Optional Perforated Grids

Top grids separate heaters from wafer carriers and components to increase the available tank space
Bottom grids separate heaters from the tank floor
Available for all frame sizes
Adds 1/8 inch to height

Specifications

Heater Element	Heating Coil
Wetted Surfaces	PFA/PTFE
Wattages	1.0 – 20 kW
Voltages	120 – 480 VAC 1 or 3 phase
Sizes (LxW)	7x5 to 19x14 inch
Height	1-5/8 inch
Temperature	200°C (392°F)
Hi-Limit Sensor	Type-J thermocouple
Ground Wire	Encapsulated
Lead Wire	15-ft

Markets

Semiconductor
LEDs & Electronics
Flat-Panel Displays
Photovoltaic / Solar
Life Sciences
Industrial
Pharmaceutical
Biomedical
Aerospace

Applications

Fluid Heating
