PTFE & PVDF & PFA Ultra Pure Industrial Inline Heater Fluid In Line Heater Customized

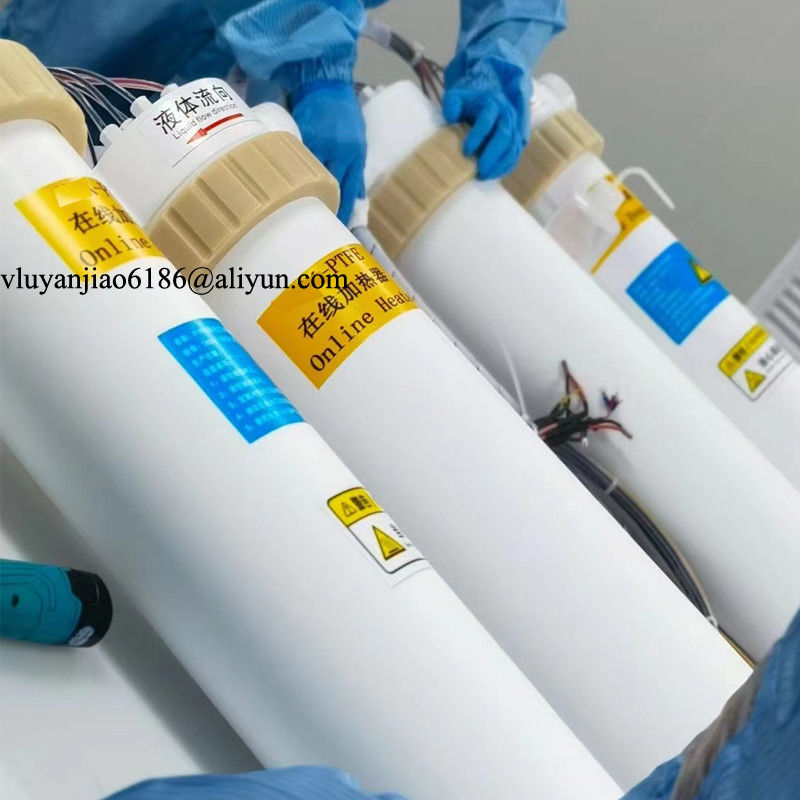

Large Image : PTFE & PVDF & PFA Ultra Pure Industrial Inline Heater Fluid In Line Heater Customized

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001,CE
Model Number:	Inline chemical Heater 022

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Contact Now

PTFE & PVDF & PFA Ultra Pure Industrial Inline Heater Fluid In Line Heater Customized

Description

Name:	PTFE & PVDF & PFA Ultra-Pure In-Line Fluid Inline Chemical Heater	Voltage:	230V(Customizable)，Single Phase(three Phase)
Power:	2kw-18KW	Material:	PFA Housing
Heater Applications:	Heating Deionized Water, Acids, And Less Aggressive Process Chemistries Use In High-purity Processes Of Semiconductor, Solar, MEMS Manufacturing, And Other Industries Using High-purity Fluids.	Market:	Semiconductor
Highlight:	Ultra Pure Industrial Inline Heater , Customized PFA Inline Heater , PTFE Fluid In Line Heater

PTFE & PVDF & PFA Ultra-Pure In-Line Fluid Inline Chemical Heater

Faster heatup: Single heater chamber sizes up to 18kW.

Rapid installation: Customized plumbing connections

Long heater life for reduced cost of ownership (COO):

Patented heater gas purge system continuously removes any chemical permeation and ensures long element life.

Long heater life and clean operating: Patented heater gas purge system continuously removes chemical permeation and ensures exceptionally long element life. This system also protects against any potential ionic contamination of the chemistry.

Rugged construction: Thick walled chamber provides long service life in the harshest high temperature applications.

Exceptionally clean performance: Thick fluoropolymersheath minimizes permeation. Element purge monitoring minimizes ionic contamination potential. Cleanroom assembly and testing ensures the highest manufacturing standards.

Outstanding chemical compatibility: All fluoropolymerwetted parts compatible with virtually any chemistry.

Excellent temperature stability: Low watt density design enables accurate control of process temperature.

Benefits and Specifications

Unmatched heating of semiconductor process fluids upto 210°C.
Patented heater gas purge system ensures long element life and reduced cost of ownership.
Thick walled chamber provides long service life in the harshest high temperature applications.
Element purge monitoring minimizes ionic contamination potential. Cleanroom assembly and testing ensures the highest manufacturing standards.
All fluoropolymer wetted parts provide outstandingcompatibility with virtually any chemistry.
Low watt density design enables precise and stable control of process temperature.
PVDF high temperature mounting brackets (Hightemperature model)
Options:
Horizontally mounted configuration
Integral cooling coils
100 ohm RTDs or “J”, “K”, or “E” type process and

element thermocouples
Lower watt density heaters for special applications

Specifications

Heater	PFA In-line Chemical Heater
Wattages	1.5-12 kW
Process Chemistries	Dilute Hydrofluoric acids (DHF), Buffered Hydrofluoric acids (BHF), Buffered Oxide etch (BOE), Alkaline Chemicals (TMAH, KOH, NAOH), Fluorinated Solvents, Hydrofluoric Acid, Glycol, and much more.
Max Operating Temperature	180°C (consult factory for higher temperatures)
Max Pressure	40 psi at 180°C
Voltages	200-400VAC, single or 3 phase model dependent

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Others Applications

PTFE Tanks

We can serve you in the teflon lined welded tank, small teflon lined vessel, mixer PTFE lined vessel and more PTFE teflon lined tank below.
Material used : PTFE, PFA, FEP, ECTFE, PVDF etched or glass backing.

Can store acid or alkali
high temperature resistance
Can custom sizes or even install PFA outlet and PFA inlet

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition

Products(2)

MOTS TRIPLE – VERTICAL
MOTS Triple Vertical: L-shaped, vertical metal over the side heater. 3,000-36,000 watts, 208-600 volts.

PTFE & PVDF & PFA Ultra Pure Industrial Inline Heater Fluid In Line Heater Customized 9

9HS SERIES – TUBULAR
9HS PTFE Heater: Over the side, 9 element, tubular heater. Three phase. 9000-31500 watts, 208-600 volts.

PTFE & PVDF & PFA Ultra Pure Industrial Inline Heater Fluid In Line Heater Customized 10

V SERIES – VARIPOWER
Metal or Fluoropolymer (PTFE) sheath heater. Single phase. Heats up to 212°F (100°C). 100-1000 watts, 120-240 volts.

PTFE & PVDF & PFA Ultra Pure Industrial Inline Heater Fluid In Line Heater Customized 11

MOTS SINGLE
MOTS Single Heater – Chemical and Small Immersion Heater: Metal over the side single heater. Single or three phase. 1000-12000 watts, 120-600 volts.

PTFE & PVDF & PFA Ultra Pure Industrial Inline Heater Fluid In Line Heater Customized 12

MOTS SINGLE – DAS, PHOSPHATE
MOTS Single DAS Phosphate Heater – Top Portable Electric Immersion Heaters: Phosphate, metal over the side heater. Single or three phase. 1000-10000 watts, 120-600 volts.

PTFE & PVDF & PFA Ultra Pure Industrial Inline Heater Fluid In Line Heater Customized 13

MOTS TRIPLE – L SHAPED, DERATED
Derated, low watt density, L-shaped, bottom style metal over the side heater. 1500-18000 watts, 120-480 volts.

PTFE & PVDF & PFA Ultra Pure Industrial Inline Heater Fluid In Line Heater Customized 14
