Non Corrodible Industrial Immersion Heaters Fence PFA Fluoropolymer Photovoltaic Heater
PV or Solar Cells
Usually made of silicon, high efficiency, low-cost, long-life Photovoltaic (PV) solar cells are made by depositing PV material layers on a supporting material. Layering multiple semiconductors to create multijunction cells increases efficiency.
PFA Immersion Frame Heaters are great for heating fluid baths to a constant temperature
Product Description

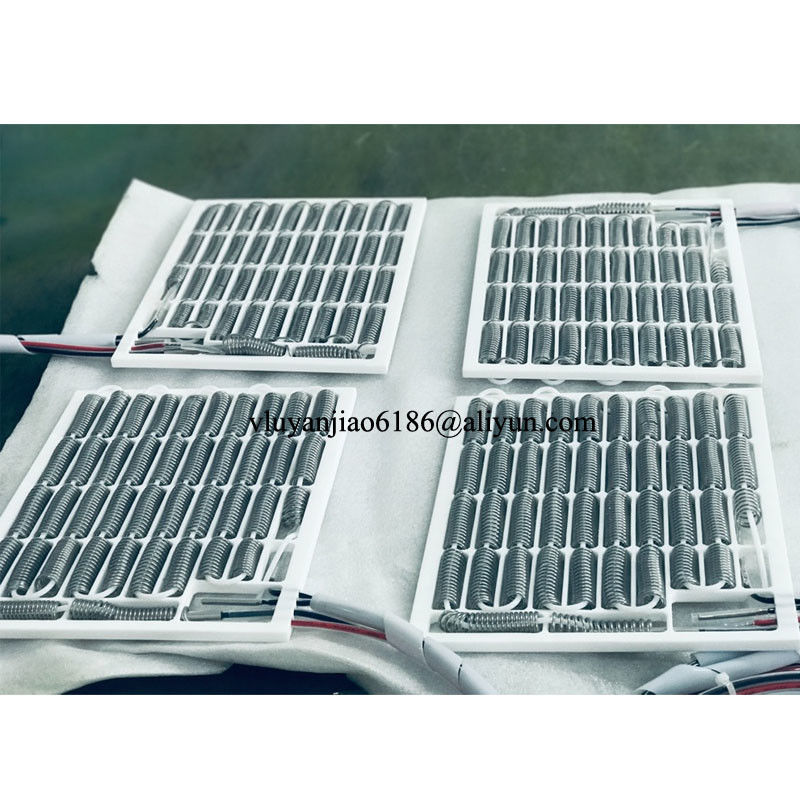

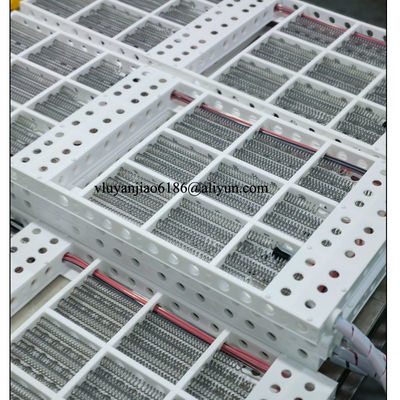

Industrial Immersion Heaters - Fluoropolymer (PFA) Immersion Fence Heaters
High performance, non-corrodable electric tank heater
The Popular is manufactured from high integrity fluoropolymers to give best protection against deterioration and to give high performance in corrosive solutions.
Now available - fitted to order
OTP: Protect your plant from catastrophic heater failure.
Switches the heater off if the element gets too hot.
HPD: Protect your heater from low level failure.
Simple conductive level device built into the heater.
The element has an open construction to allow free flow of liquid across the surface and to limit solid retention, which is particularly important when used in solutions which generate solid deposition such as electroless nickel and copper plating processes.
The heater is thin enough to fit easily into confined spaces, for example behind anode baskets. The Popular can be supplied with hanging brackets for vertical mounting or standoffs for horizontal mounting. The integral BraudeFlex lead has no junctions and is continuous and flexible.
Typical applications: Electroplating, electroless plating, anodising, acid pickling, frost protection for chemical storage tanks, chemical processes, marine water tanks, many more.
Industrial Immersion Heaters - Fluoropolymer Heater
|
Watts
|
Voltage
|
Phase
|
Dimension(mm)
|
|
2000
|
120-600
|
Single or Three
|
300×150×40
|
|
3000
|
240-600
|
Single or Three
|
350×180×40
|
|
4500
|
240-600
|
Single or Three
|
450×200×40
|
|
6000
|
240-600
|
Single or Three
|
600×250×50
|
|
9000
|
240-600
|
Single or Three
|
750×350×50
|
|
10000
|
240-600
|
Single or Three
|
800×450×50
|
|
12000
|
240-600
|
Single or Three
|
900×500×50
|
|
15000
|
240-600
|
Single or Three
|
1000×600×50
|
|
18000
|
240-600
|
Single or Three
|
1100×700×50
|
Other Applications(Other products)
PTFE Tanks
We can serve you in the teflon lined welded tank, small teflon lined vessel, mixer PTFE lined vessel and more PTFE teflon lined tank below.
Material used : PTFE, PFA, FEP, ECTFE, PVDF etched or glass backing.
Can store acid or alkali
high temperature resistance
Can custom sizes or even install PFA outlet and PFA inlet
