2KW 4KW 6KW 12KW 18KW Inline Chemical Heater PFA Electrical In Line Heater

Large Image : 2KW 4KW 6KW 12KW 18KW Inline Chemical Heater PFA Electrical In Line Heater

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001,CE
Model Number:	Inline chemical Heater 11

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Contact Now

2KW 4KW 6KW 12KW 18KW Inline Chemical Heater PFA Electrical In Line Heater

Description

Name:	2KW, 4KW, 6KW, 12KW, 18KW Inline Chemical Heater PFA In-Line Heater	Voltage:	230V(Customizable)，Single Phase
Power:	3KW	Material:	PFA Housing
Heater Applications:	Heating Deionized Water, Acids, And Less Aggressive Process Chemistries Use In High-purity Processes Of Semiconductor, Solar, MEMS Manufacturing, And Other Industries Using High-purity Fluids.	Market:	Semiconductor
Highlight:	18KW Inline Chemical Heater , 12KW PFA In Line Heater , PFA Electrical In Line Heater

2KW, 4KW, 6KW, 12KW, 18KW Inline Chemical Heater PFA In-Line Heater

Features

No O-Ring seals
All wetted surfaces are high purity PFA
PTFE housing for double containment
Maximized watt density for performance
Light weight construction
Small foot print enabled by unique design
Zero maintenance required
PFA fluid path, wide chemistry compatibility
High temperature capability 200°C+

Specifications

Heater	PFA In-line Chemical Heater
Wattages	1.5-12 kW
Process Chemistries	Dilute Hydrofluoric acids (DHF), Buffered Hydrofluoric acids (BHF), Buffered Oxide etch (BOE), Alkaline Chemicals (TMAH, KOH, NAOH), Fluorinated Solvents, Hydrofluoric Acid, Glycol, and much more.
Max Operating Temperature	180°C (consult factory for higher temperatures)
Max Pressure	40 psi at 180°C
Voltages	200-400VAC, single or 3 phase model dependent

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Applications

Point Of Use Heating
Point of Use (POU) Heating refers to the energy-efficient heating method of placing a small heater near the processing bath to reduce heat-up wait times.

Products For Point Of Use Heating

Applications

Semiconductor Wafer Cleaning
Etching
Inline Chemical Heating
Point of Use Heating (POU)

High-Purity PFA Inline Chemical Heater

PTFE Inline Heater

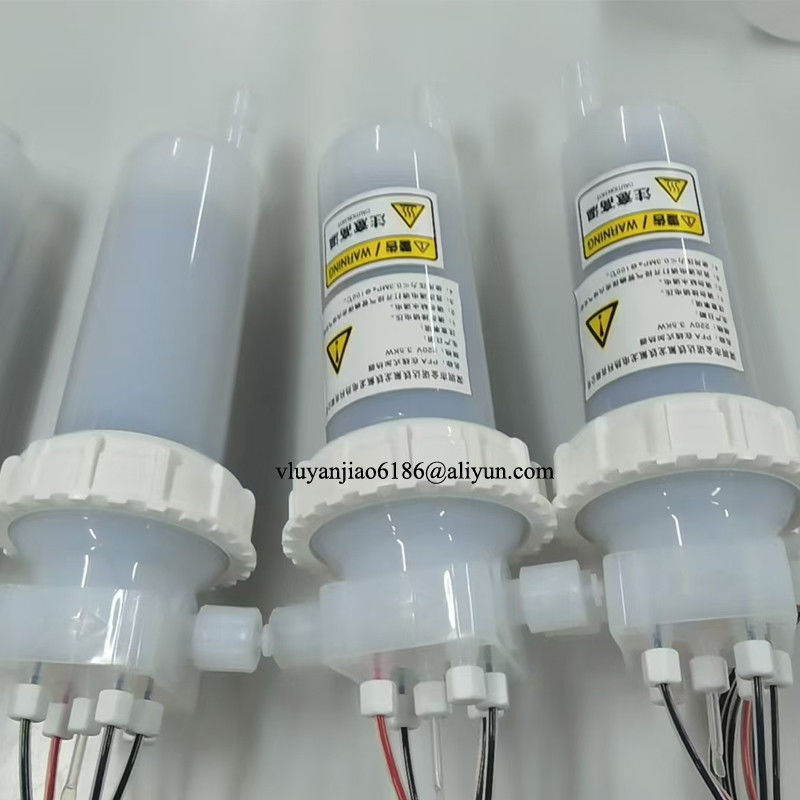

2KW 4KW 6KW 12KW 18KW Inline Chemical Heater PFA Electrical In Line Heater 1

Inline Chemical Heater

2KW 4KW 6KW 12KW 18KW Inline Chemical Heater PFA Electrical In Line Heater 2
