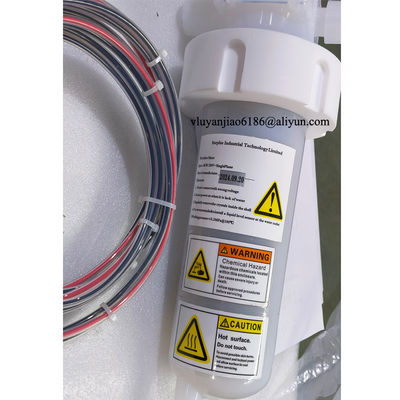

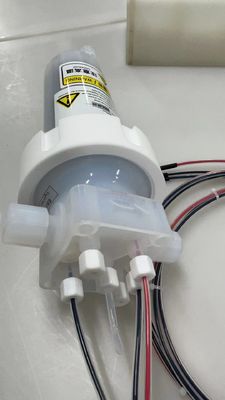

Ultra High Purity Heating PFA Industrial Inline Heater For Corrosive Chemical Heating

Large Image : Ultra High Purity Heating PFA Industrial Inline Heater For Corrosive Chemical Heating

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001,CE
Model Number:	Inline chemical Heater 04

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Contact Now

Ultra High Purity Heating PFA Industrial Inline Heater For Corrosive Chemical Heating

Description

Name:	1.5-12 KW High-Purity PFA Inline Chemical Heater For Process Chemistries	Voltage:	230V(Customizable)，Single Phase
Power:	3KW	Material:	PFA Housing
Heater Applications:	Heating Deionized Water, Acids, And Less Aggressive Process Chemistries Use In High-purity Processes Of Semiconductor, Solar, MEMS Manufacturing, And Other Industries Using High-purity Fluids.	Market:	Semiconductor
Highlight:	Chemical Heating Inline Heater , Corrosive Chemical Inline Heater , 3KW PFA Industrial Inline Heater

3KW Semiconductor Industry Ultrapure PFA Housing Inline Chemical Heater

Benefits

Heavy gauge pre-formed Inconel element can stand up to high stress conditions without breaking down
Power modulator monitors heater element temp and prevents heat buildup inside the housing
Sealed housing prevents chemistry from attacking internal components & provides secondary containment
Internal leak detect strip (requires external monitor) gives early detection of chemical leaks
All wiring shielded with teflon conduit to prevent chemical attack
Indirect heating design, no submerged heater elements
No N2 or gas purge required

Features

No O-Ring seals
All wetted surfaces are high purity PFA
PTFE housing for double containment
Maximized watt density for performance
Light weight construction
Small foot print enabled by unique design
Zero maintenance required
PFA fluid path, wide chemistry compatibility
High temperature capability 200°C+

Specifications

Heater	PFA In-line Chemical Heater
Wattages	1.5-12 kW
Process Chemistries	Dilute Hydrofluoric acids (DHF), Buffered Hydrofluoric acids (BHF), Buffered Oxide etch (BOE), Alkaline Chemicals (TMAH, KOH, NAOH), Fluorinated Solvents, Hydrofluoric Acid, Glycol, and much more.
Max Operating Temperature	180°C (consult factory for higher temperatures)
Max Pressure	40 psi at 180°C
Voltages	200-400VAC, single or 3 phase model dependent

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Applications

Acid Heating And Corrosive Chemical Heating

Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, Process Technology fluoropolymer (PTFE) heaters and exchangers are engineered to perform.

Acid Heating And Corrosive Chemical Heating(2)

TF SERIES
High-purity, fluoropolymer (PTFE) bottom heater. Single or three phase. 1000-6000 watts, 120-480 volts.

Ultra High Purity Heating PFA Industrial Inline Heater For Corrosive Chemical Heating 0

HXRL SERIES
Low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.

Ultra High Purity Heating PFA Industrial Inline Heater For Corrosive Chemical Heating 1

HXO SERIES
Low watt density, O shaped fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-9000 watts, 120-600 volts.

Ultra High Purity Heating PFA Industrial Inline Heater For Corrosive Chemical Heating 2

HXF SERIES
Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.

Ultra High Purity Heating PFA Industrial Inline Heater For Corrosive Chemical Heating 3

HX SERIES
Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . Single phase. 500-9000 watts, 120-600 volts.
Ultra High Purity Heating PFA Industrial Inline Heater For Corrosive Chemical Heating 4

X SERIES COIL
Excellent chemical compatibility and rugged design for your heating or cooling application. All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction. Eliminates stray currents. PFA coils are available for steam service up to 60 PSI. 10 PSI minimum steam pressure required for operation.

Ultra High Purity Heating PFA Industrial Inline Heater For Corrosive Chemical Heating 5
