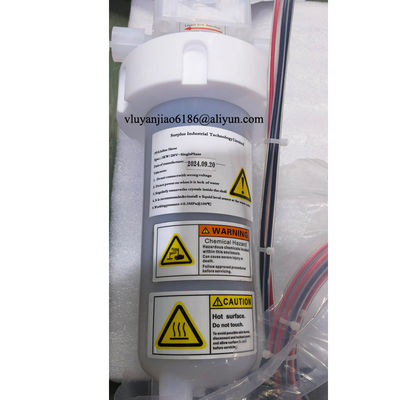

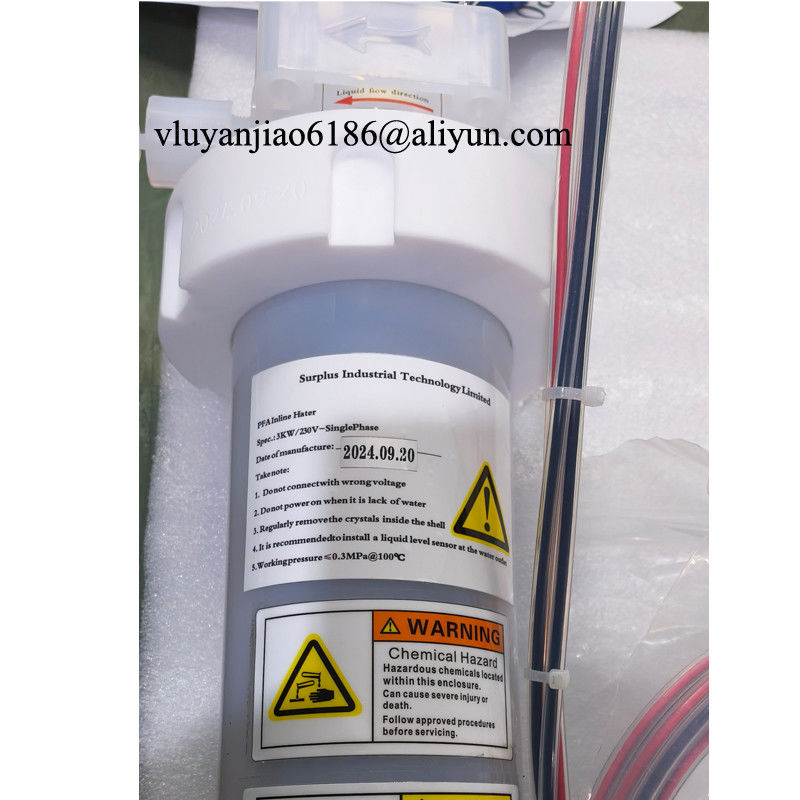

3KW Ultrapure PFA Housing In Line Heater For Chemical Semiconductor Industry

Large Image : 3KW Ultrapure PFA Housing In Line Heater For Chemical Semiconductor Industry

Product Details:

Place of Origin:	China
Brand Name:	Surplus
Certification:	ISO9001,CE
Model Number:	Inline chemical Heater 02

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden Case or Carton Box
Delivery Time:	10-15 working days
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Contact Now

3KW Ultrapure PFA Housing In Line Heater For Chemical Semiconductor Industry

Description

Name:	3KW Semiconductor Industry Ultrapure PFA Housing Inline Chemical Heater	Voltage:	230V(Customizable)，Single Phase
Power:	3KW	Material:	PFA Housing
Heater Applications:	Heating Deionized Water, Acids, And Less Aggressive Process Chemistries Use In High-purity Processes Of Semiconductor, Solar, MEMS Manufacturing, And Other Industries Using High-purity Fluids.	Market:	Semiconductor
Highlight:	PFA Housing In Line Heater , 3KW Chemical In Line Heater , Semiconductor Industry In Line Heater

3KW Semiconductor Industry Ultrapure PFA Housing Inline Chemical Heater

Benefits

Heavy gauge pre-formed Inconel element can stand up to high stress conditions without breaking down
Power modulator monitors heater element temp and prevents heat buildup inside the housing
Sealed housing prevents chemistry from attacking internal components & provides secondary containment
Internal leak detect strip (requires external monitor) gives early detection of chemical leaks
All wiring shielded with teflon conduit to prevent chemical attack
Indirect heating design, no submerged heater elements
No N2 or gas purge required

Features

No O-Ring seals
All wetted surfaces are high purity PFA
PTFE housing for double containment
Maximized watt density for performance
Light weight construction
Small foot print enabled by unique design
Zero maintenance required
PFA fluid path, wide chemistry compatibility
High temperature capability 200°C+

Specifications

Heater	PFA In-line Chemical Heater
Wattages	1.5-12 kW
Process Chemistries	Dilute Hydrofluoric acids (DHF), Buffered Hydrofluoric acids (BHF), Buffered Oxide etch (BOE), Alkaline Chemicals (TMAH, KOH, NAOH), Fluorinated Solvents, Hydrofluoric Acid, Glycol, and much more.
Max Operating Temperature	180°C (consult factory for higher temperatures)
Max Pressure	40 psi at 180°C
Voltages	200-400VAC, single or 3 phase model dependent

Industries

Semiconductor Fabrication
Solar Cell Manufacturing
Flat-Panel Display, LEDs & Electronics
Chemicals Manufacturing
Industrial Manufacturing

Applications

Fluid Heating
Filtration
Sterilization & Cleaning

Fluid Heating

Ultra-Pure Fluid Heaters

Overview
We offers a variety of patented and uniquely-engineered ultra-pure precision heaters for heating various chemical and plating solutions, gases, solvents and deionized water. Our award-winning engineers design and manufacture components from PFA, applied to patented PFA heating technology, that achieves a small mass with a large surface area, providing a faster heater response and a longer life at elevated temperatures. Our extremely flexible high-output heating coils are capable of being fashioned into an almost endless variety of shapes and sizes.

The resulting heaters outlast competing products of lesser capability and are designed into a wide range of standard and customized products.
